Compatibility
• Hydraulic impement flow rate 8.5gpm to 14.9gpm - Standard motor
• Hydraulic implement flow rate 15gpm to 20gpm - High capacity motor (Special Order Only)
• Third function or Lane Shark valve kit. ONLY pressure comes from the remote, and return must be to the sump. (CANNOT RETURN THROUGH AUXILIARY HYDRAULICS)
• We do not recommend rear remote plumbing as some tractors may lose loader priority
• NOT COMPATIBLE WITH DIVERTER VALVES
• NOT COMPATIBLE WITH SKID STEERS
• Minimum dry tractor weight 3000lbs
• Minimum tractor width 55 inches
• Certified roll over protection system
• For stabilization while operating the Lane Shark, fill rear tires of your tractor with water for use as a ballast, as well as additional weight on rear. ie: box blade, or rotary cutter.
Details

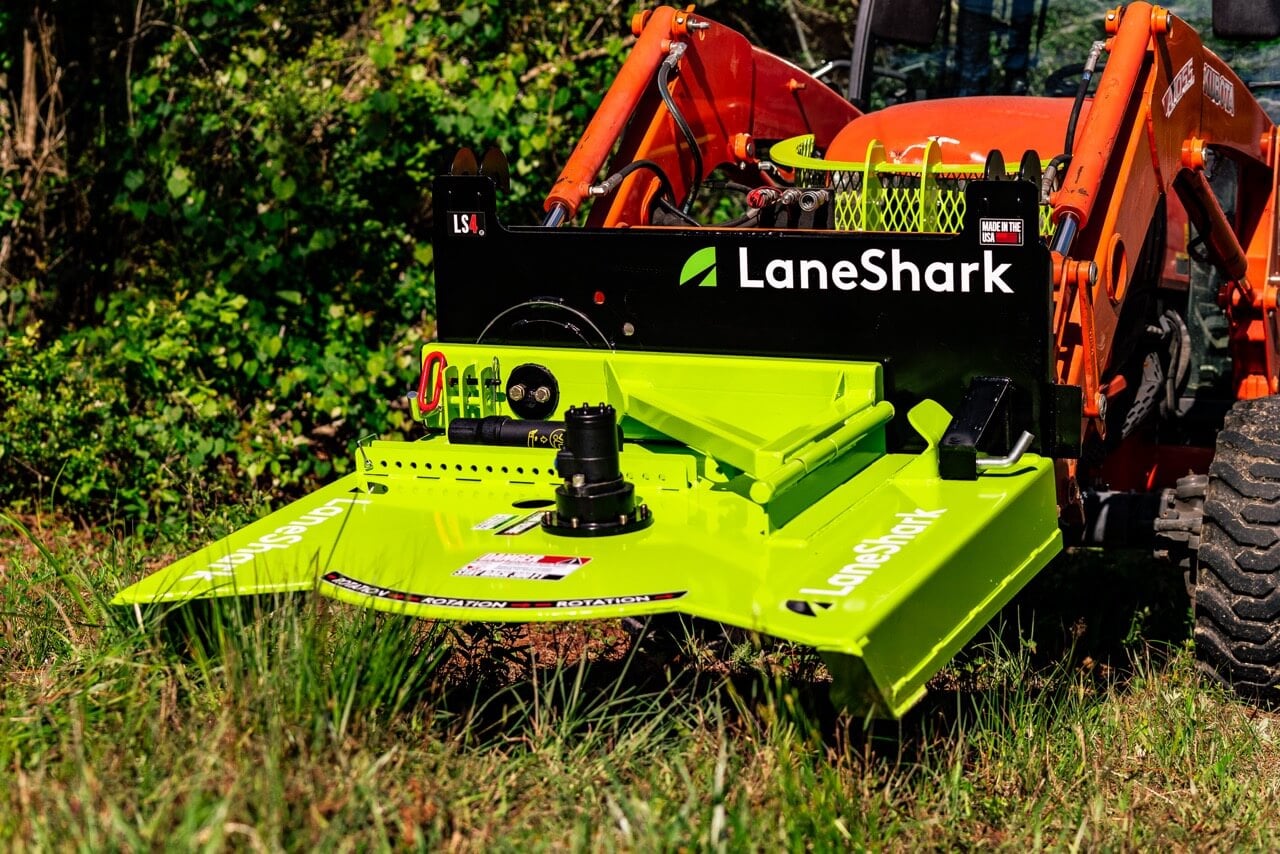

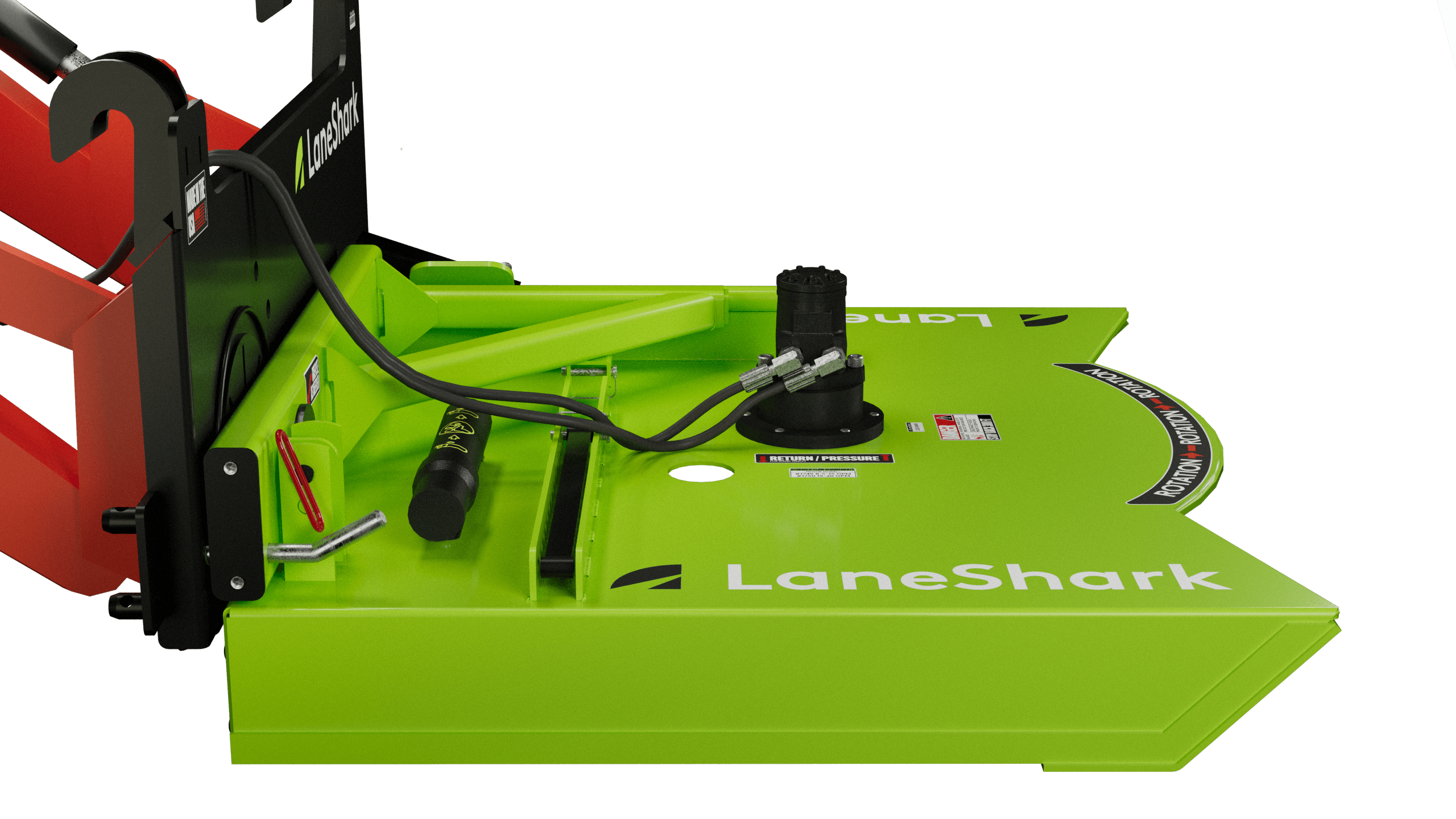

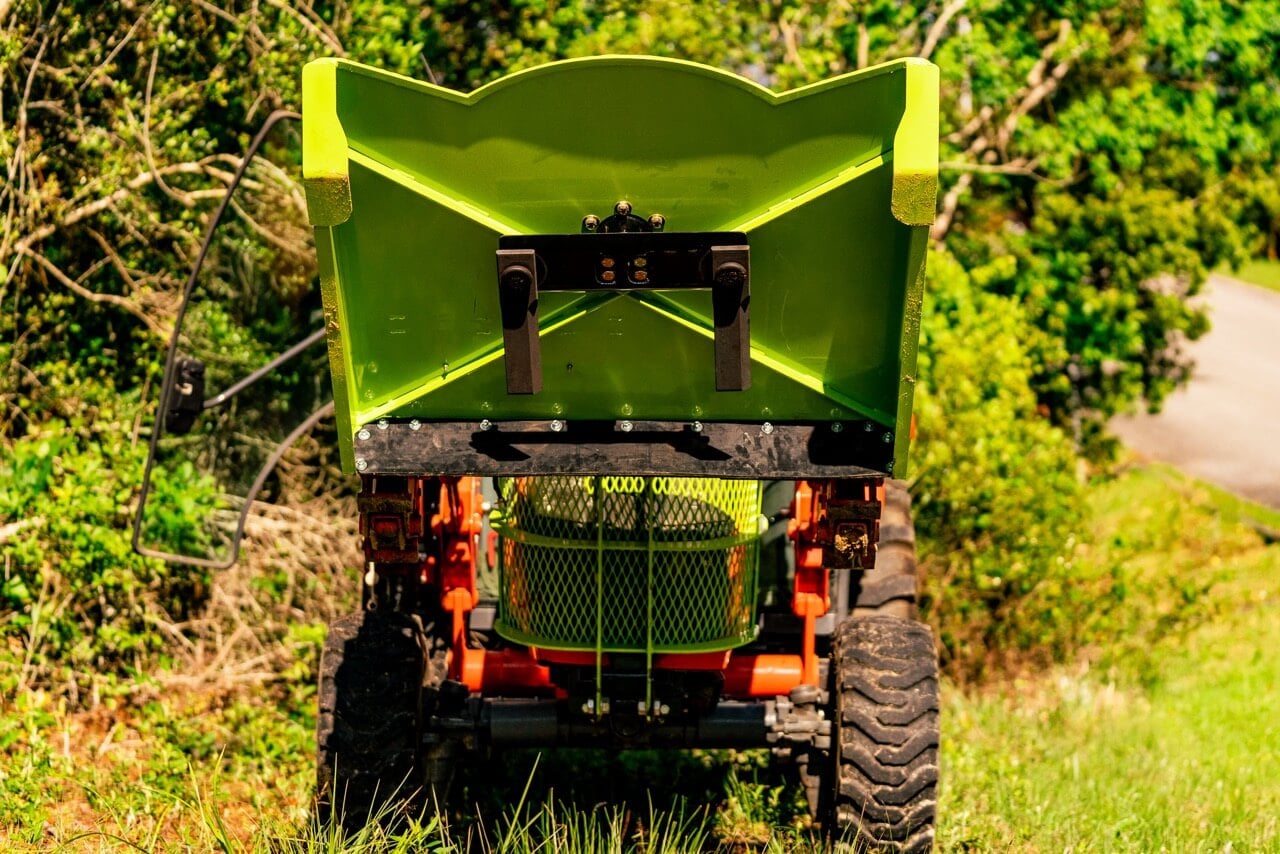

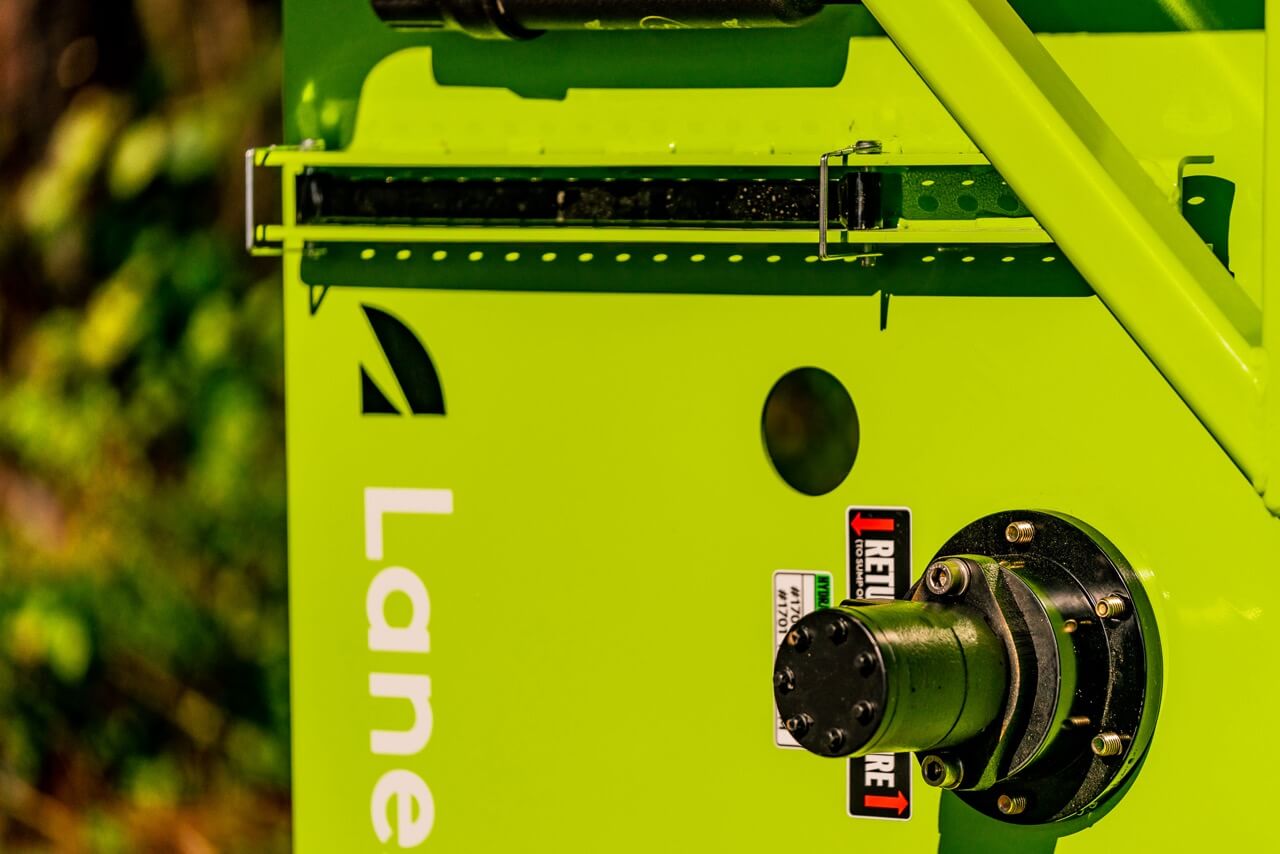

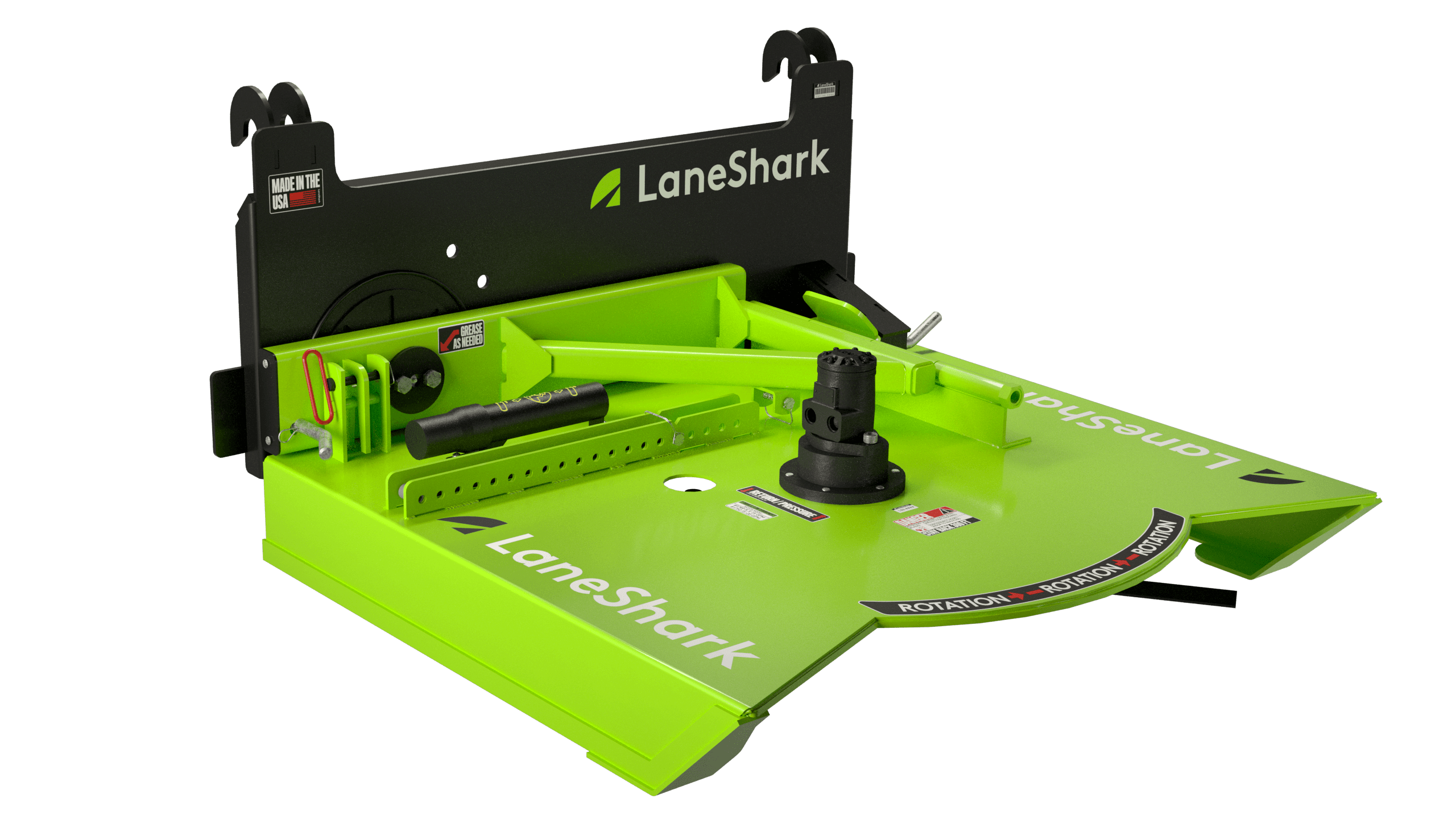

• The Lane Shark LS4 is a light duty rotary cutter designed to clear overgrown roadways, for light land management, and property maintenance.

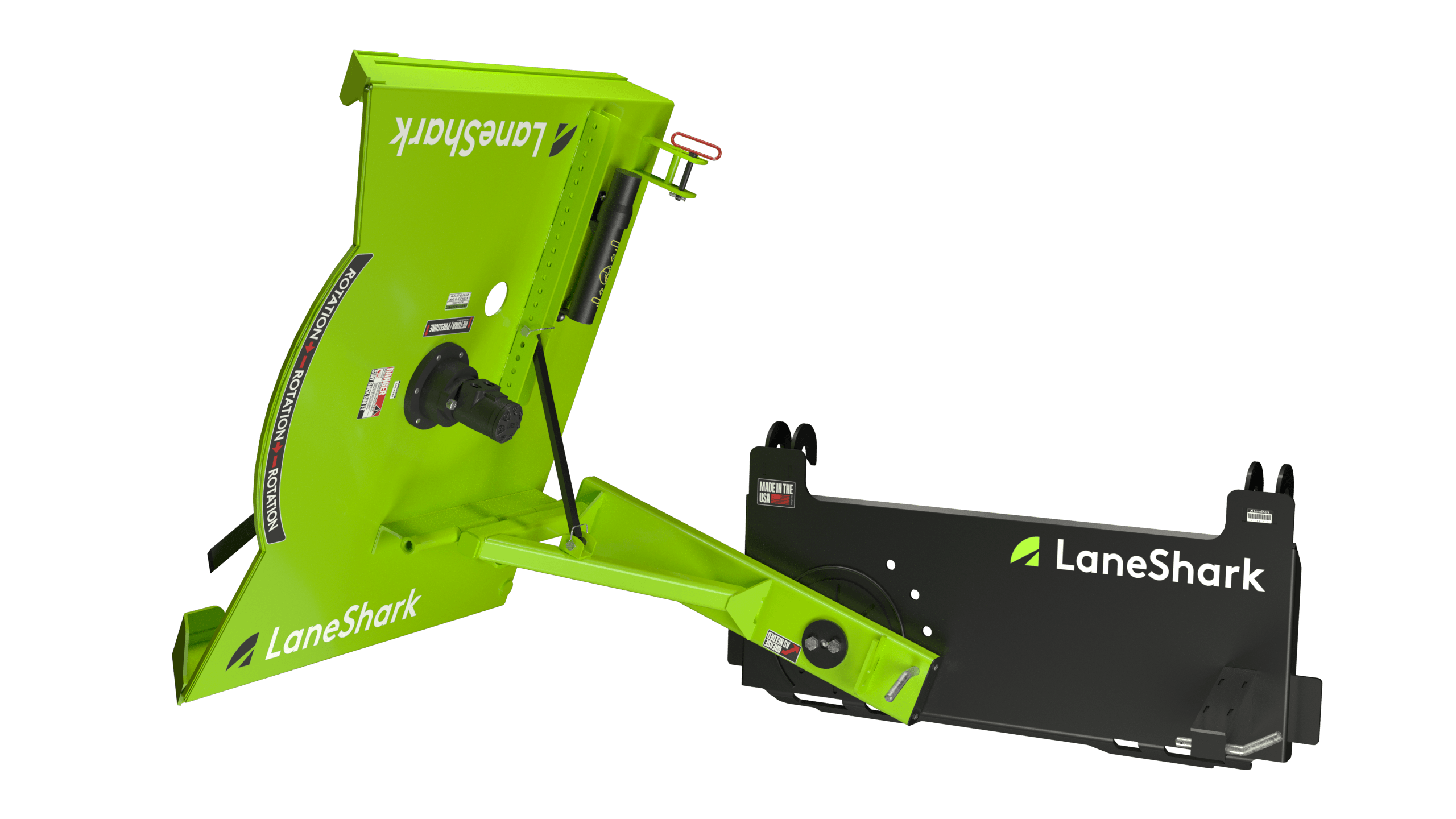

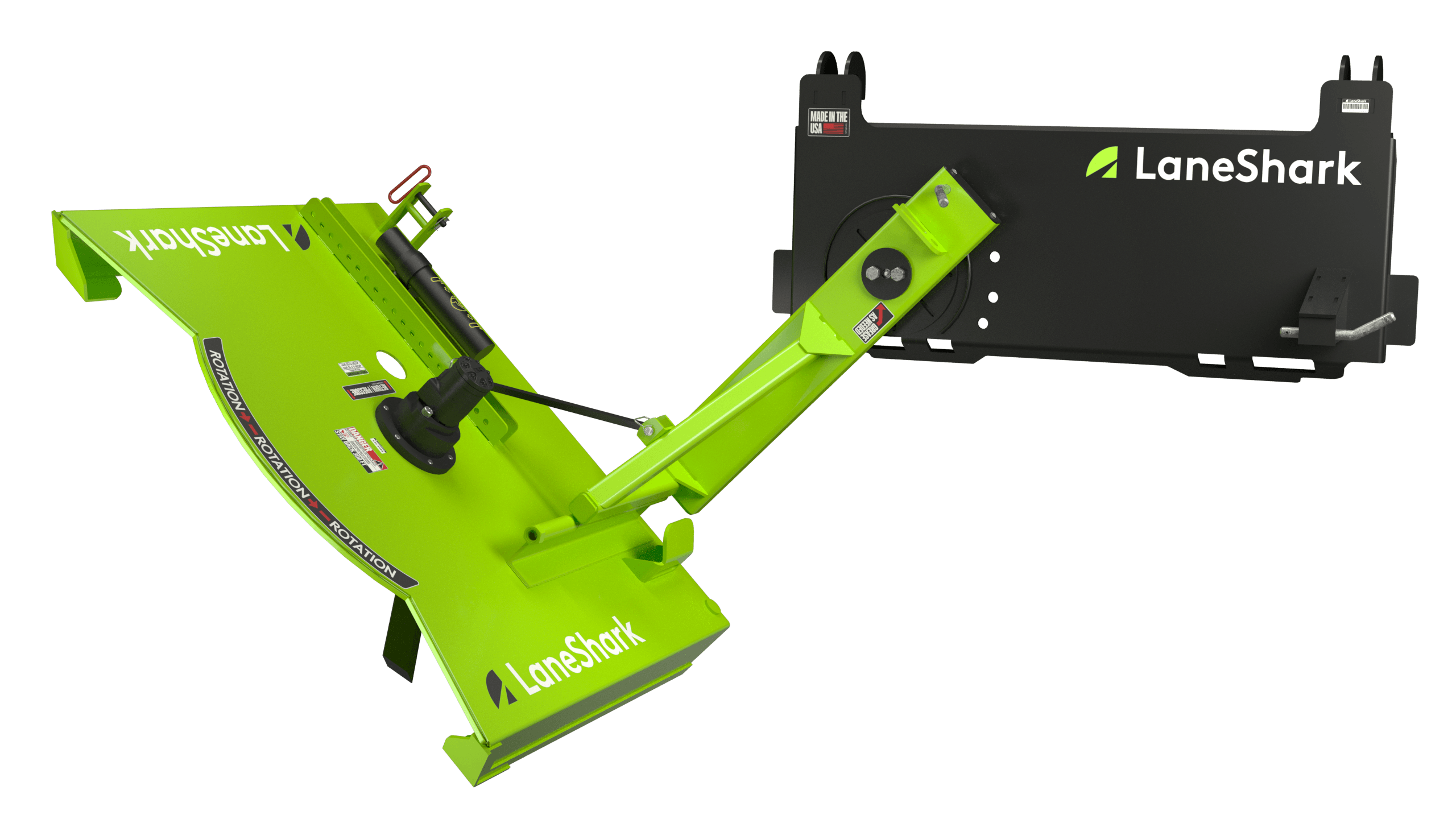

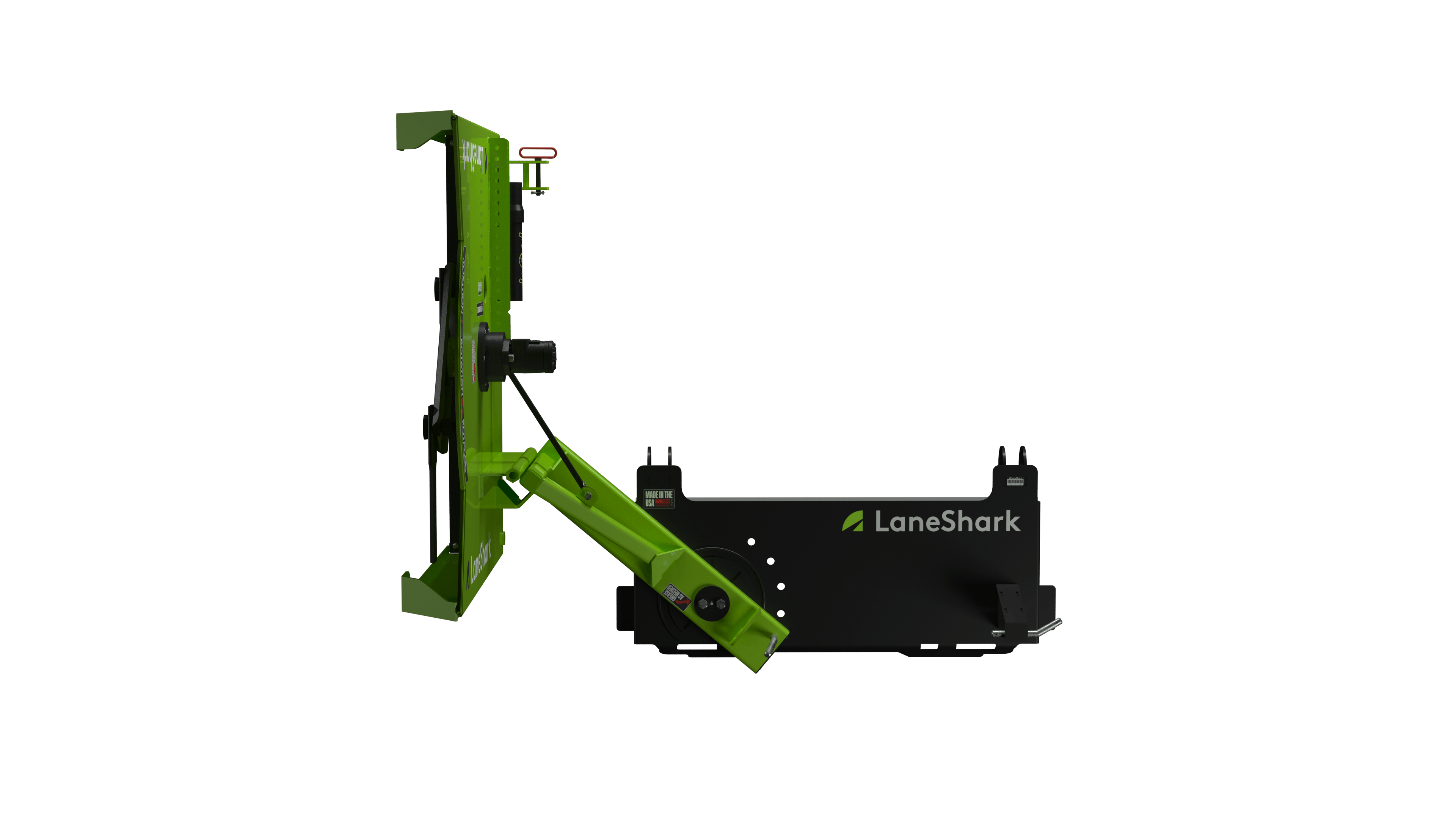

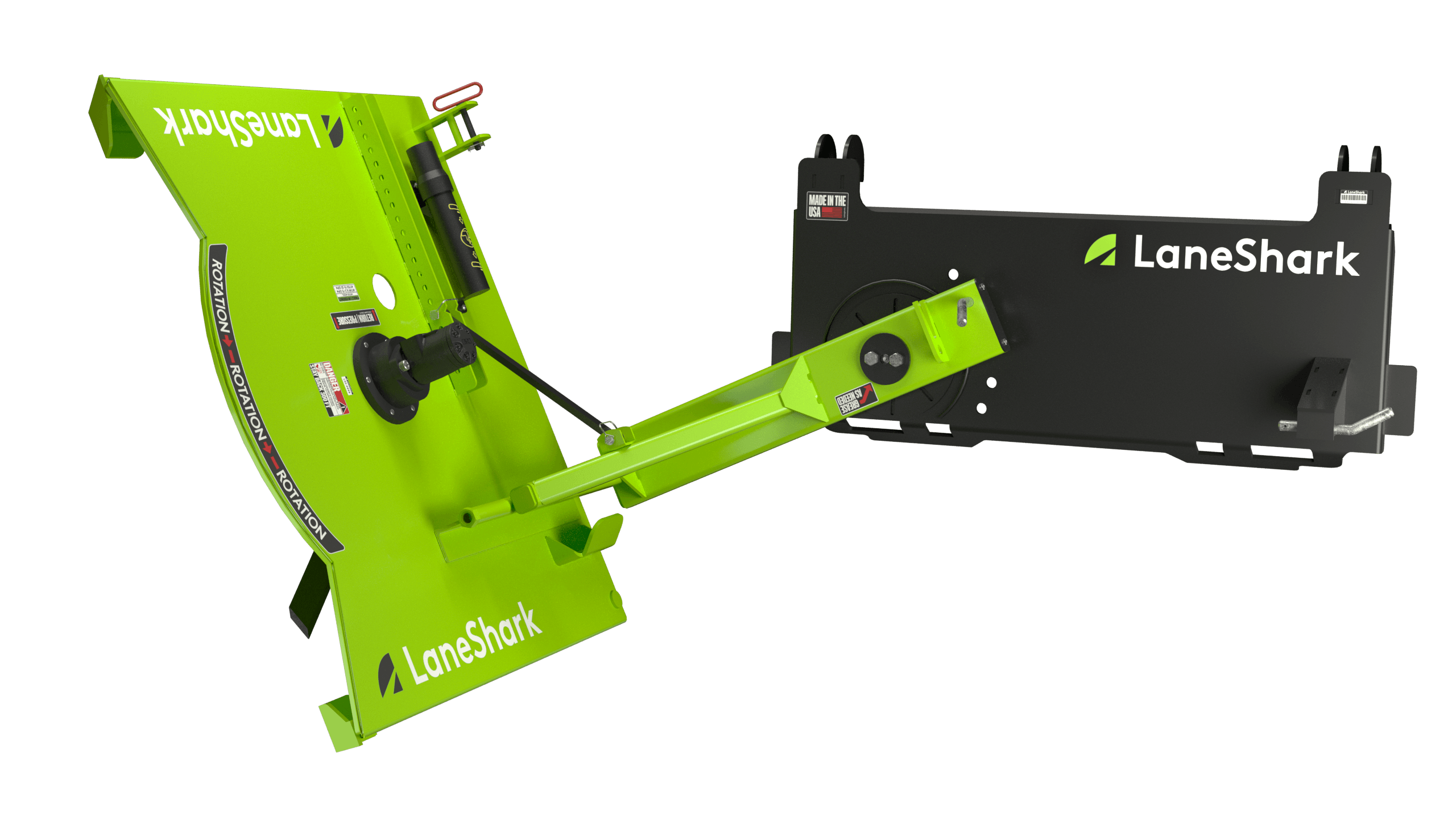

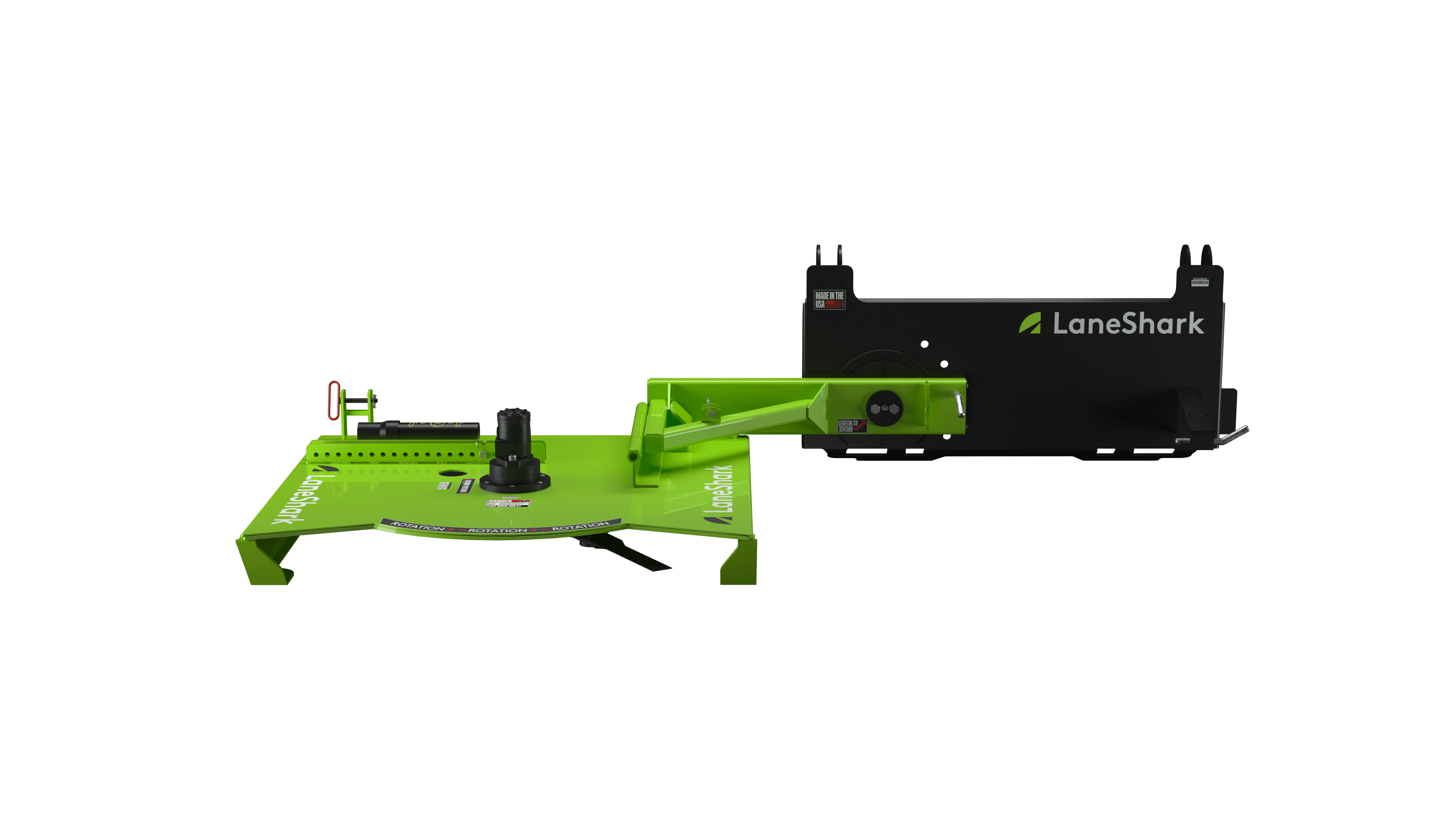

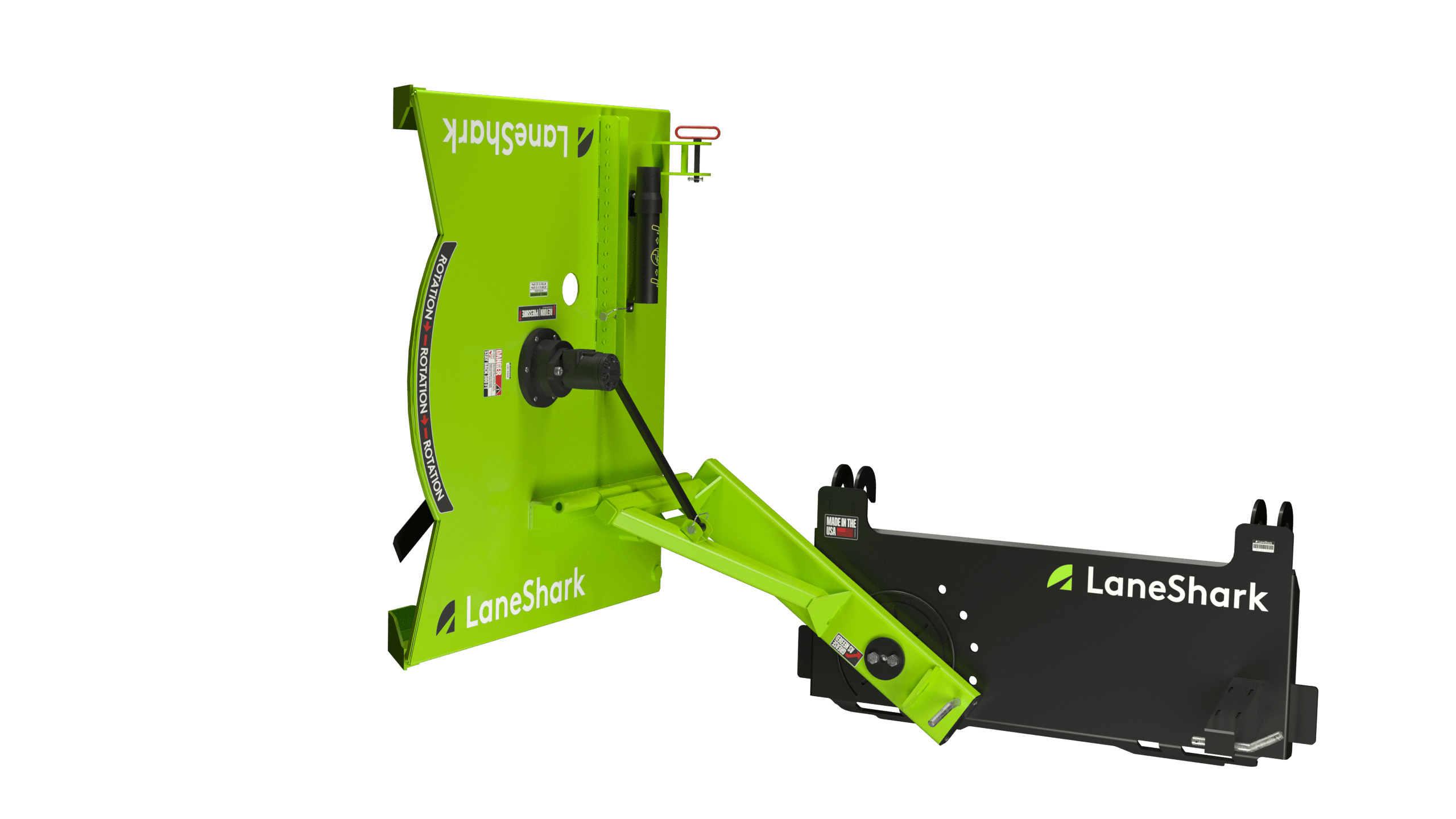

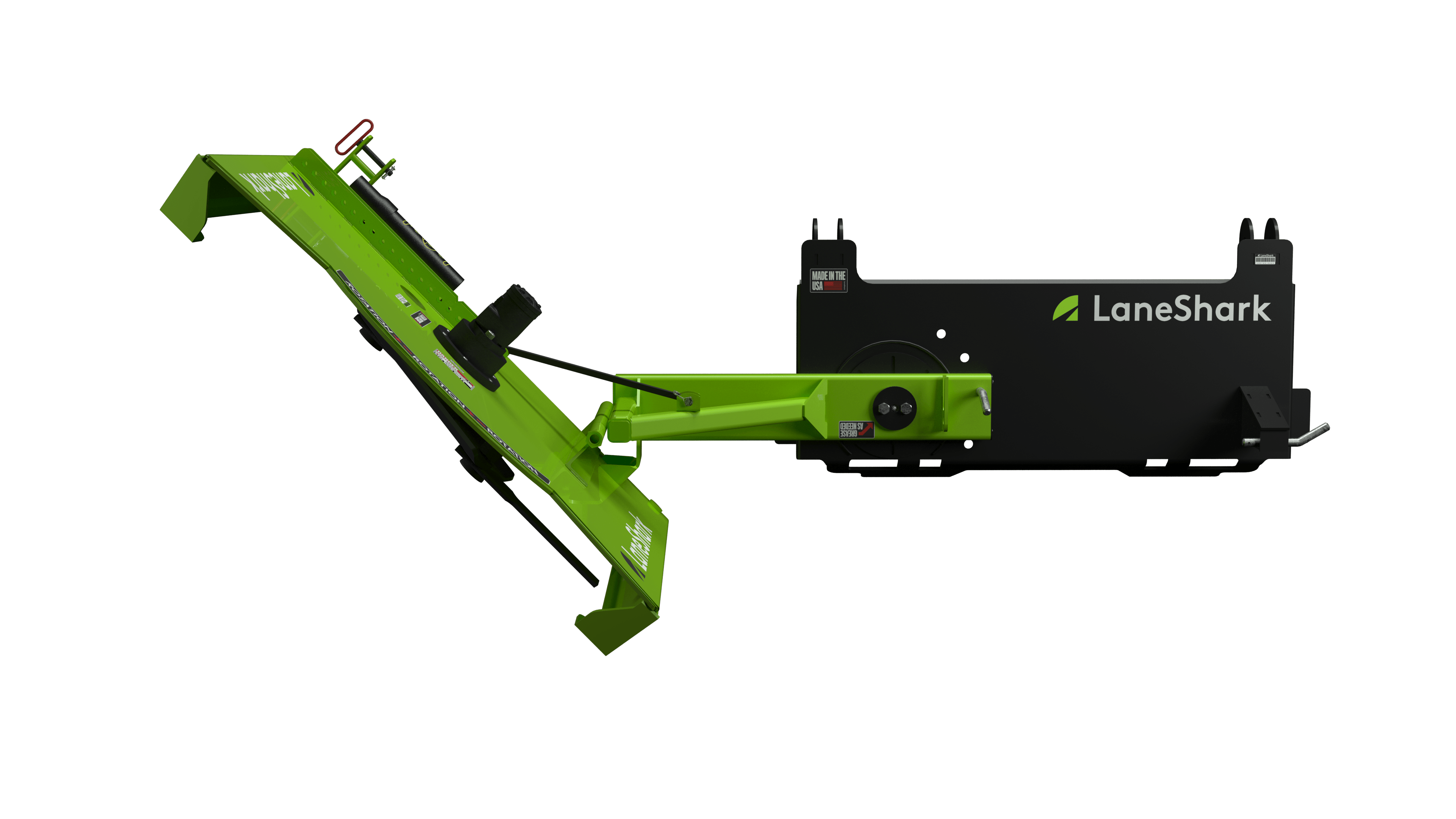

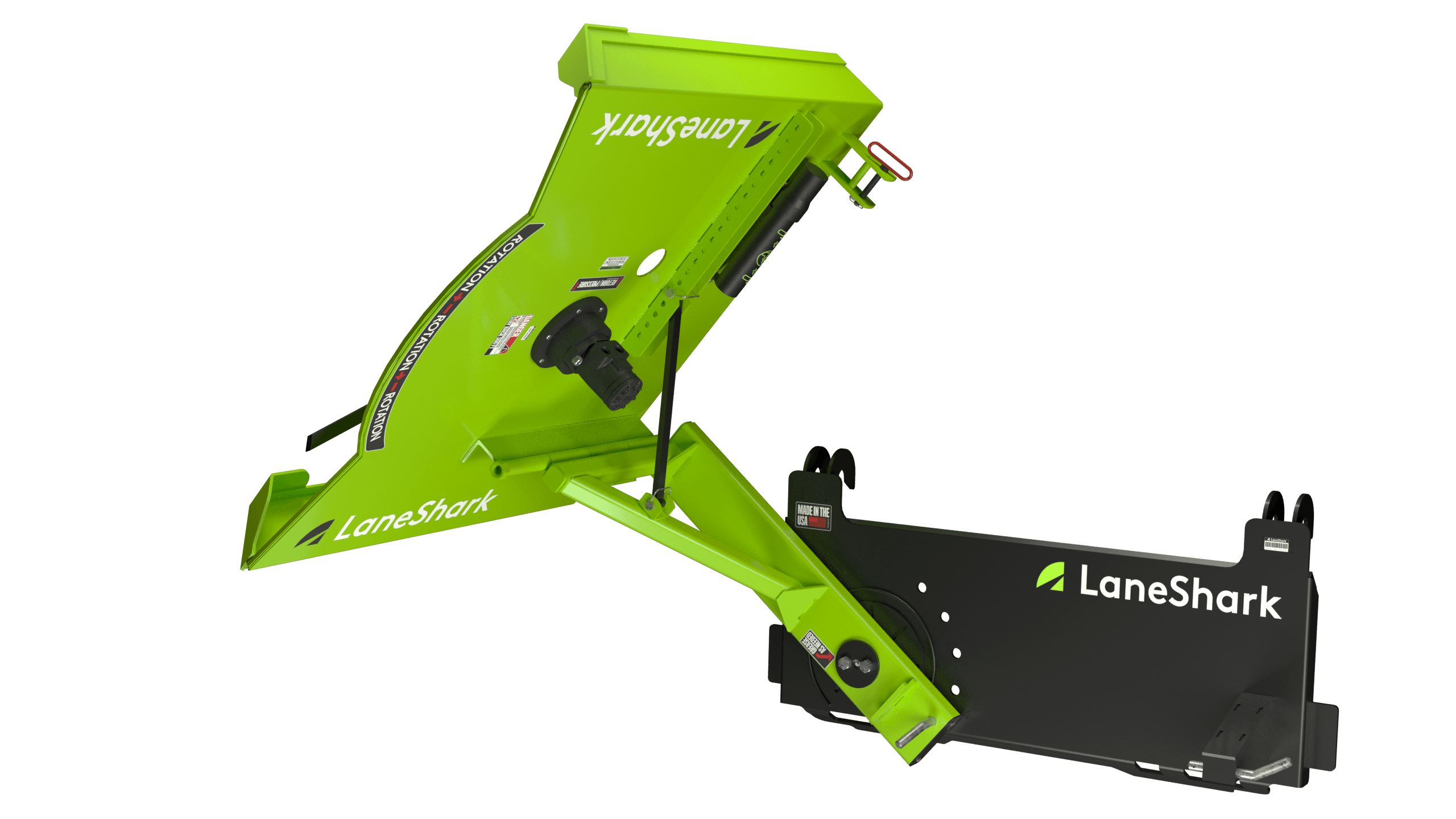

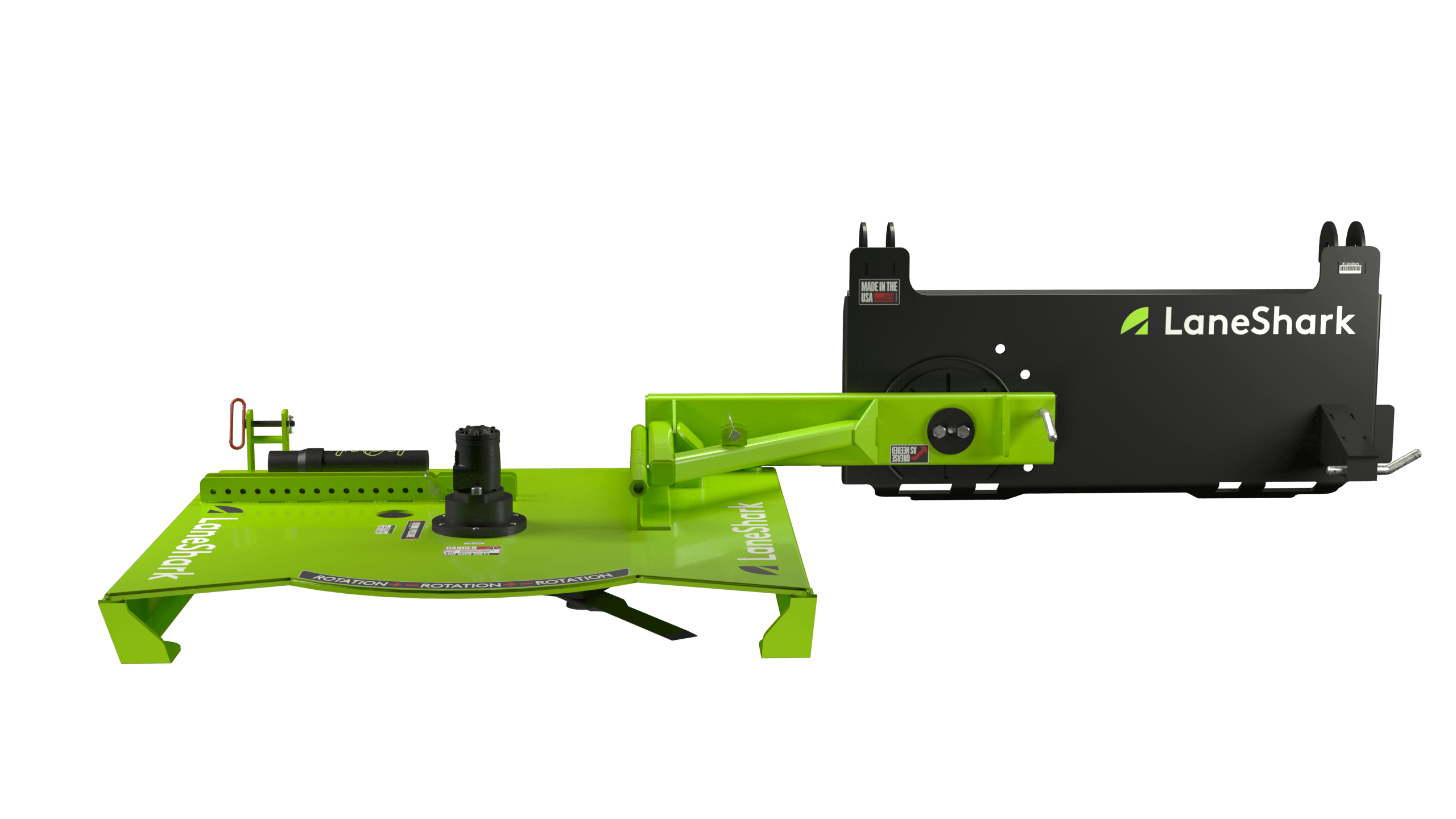

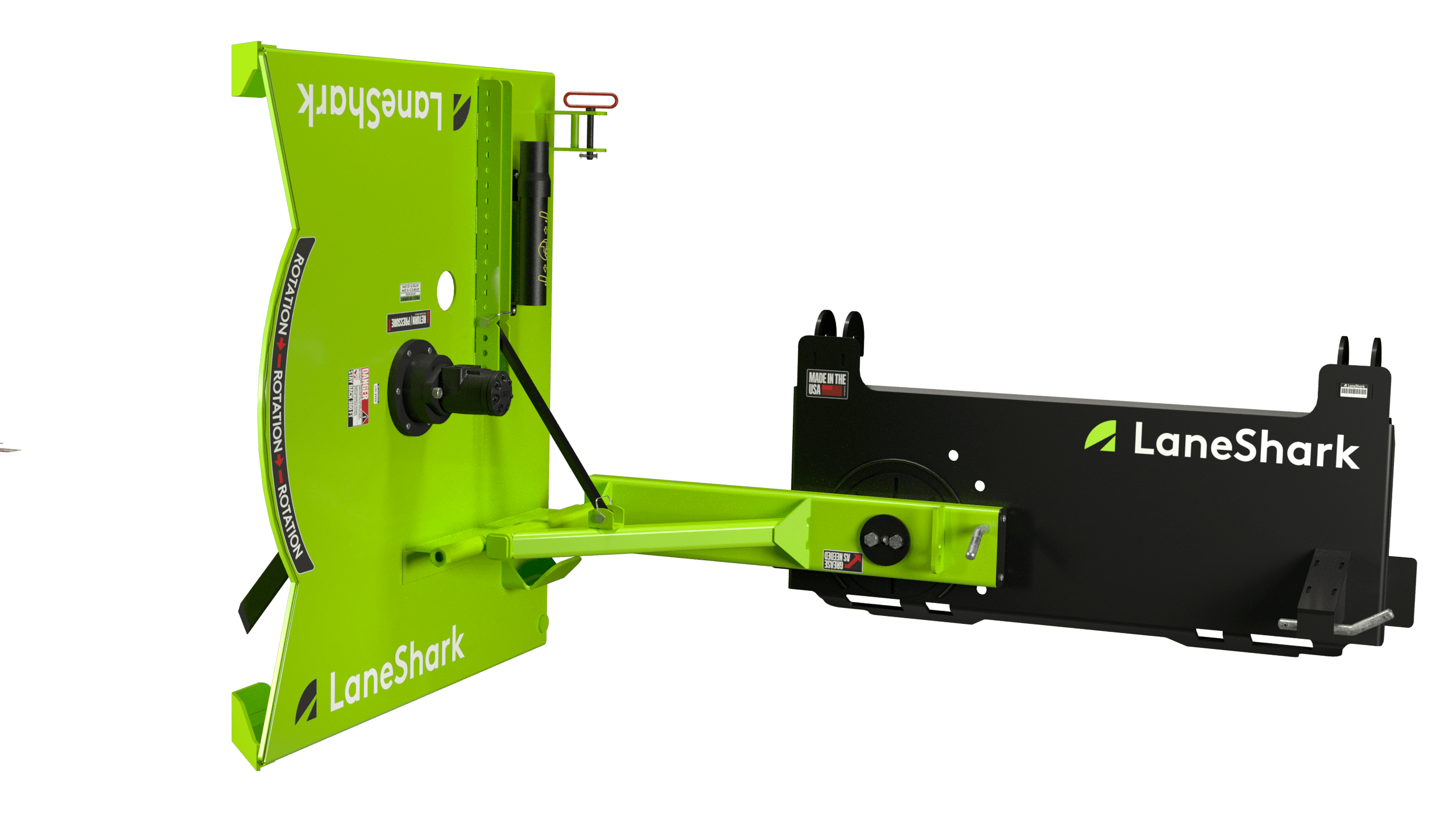

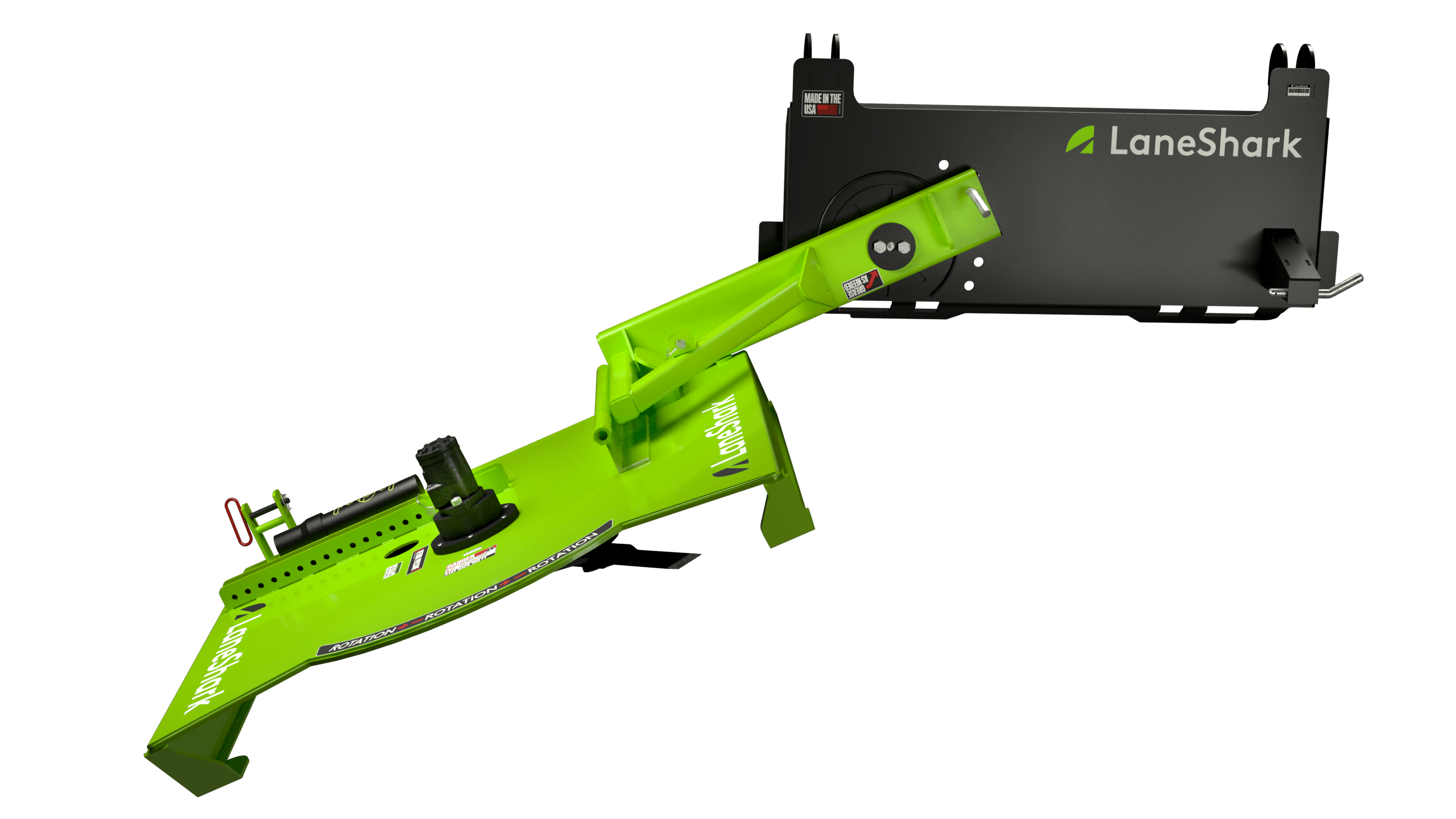

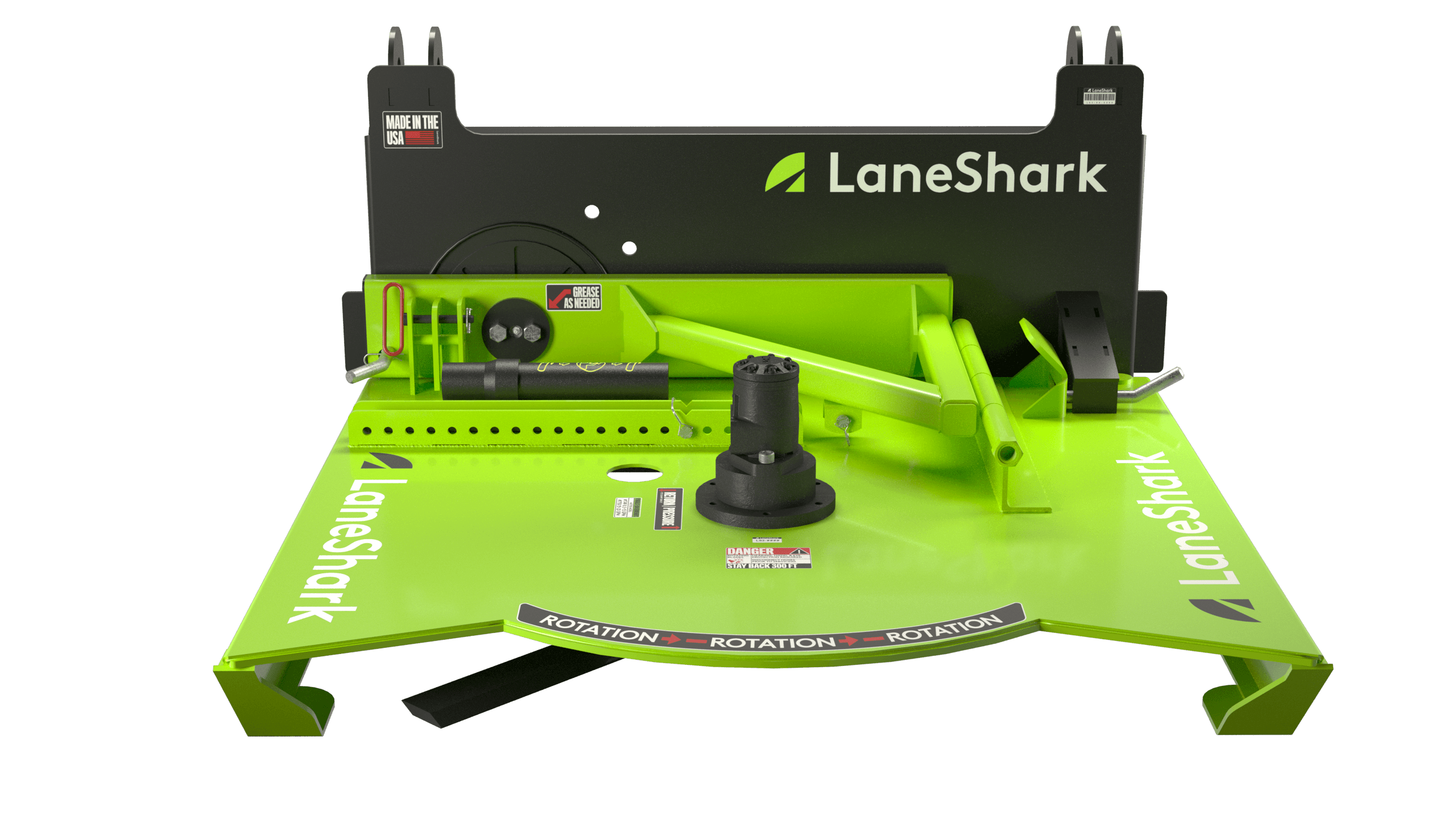

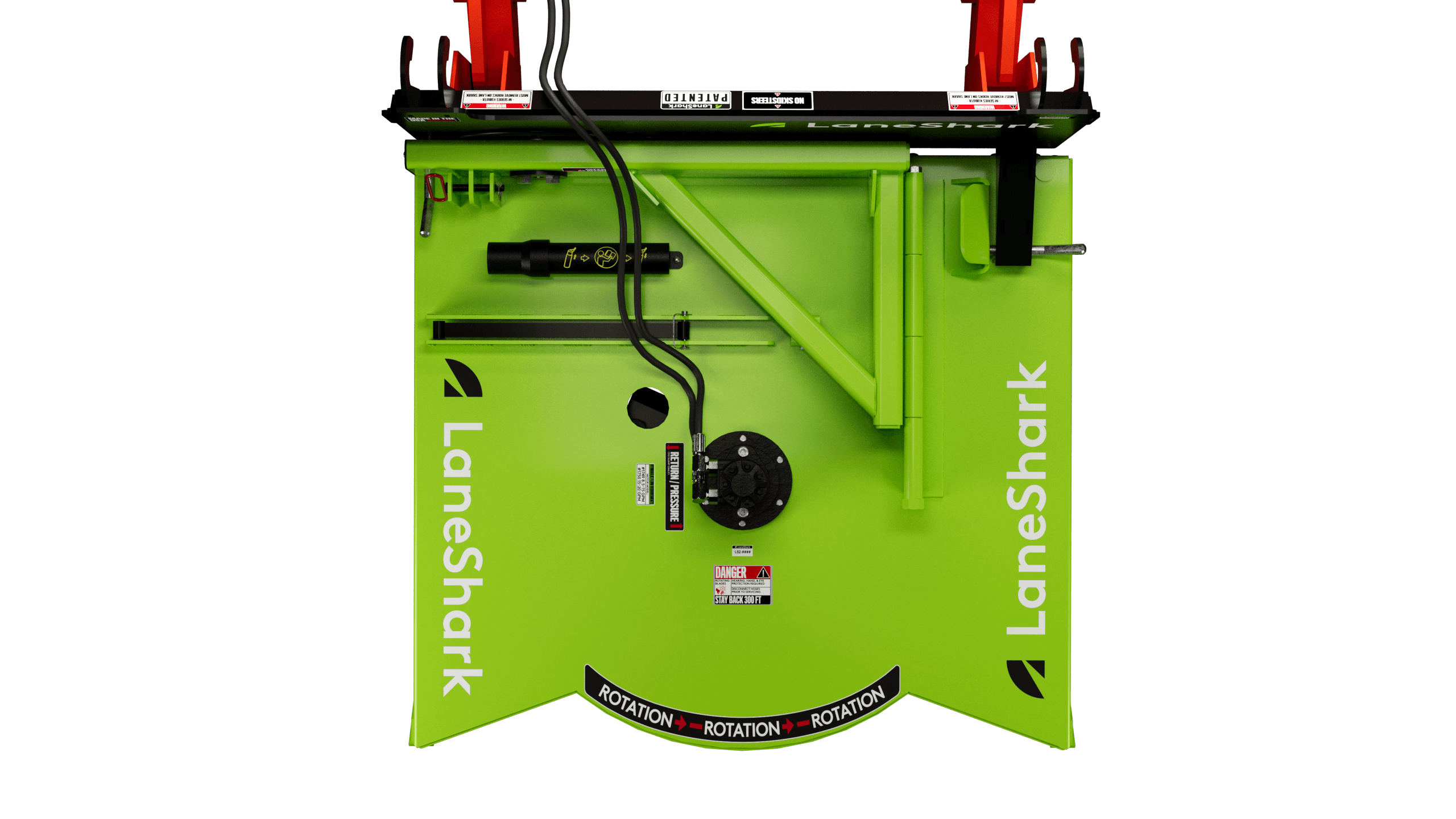

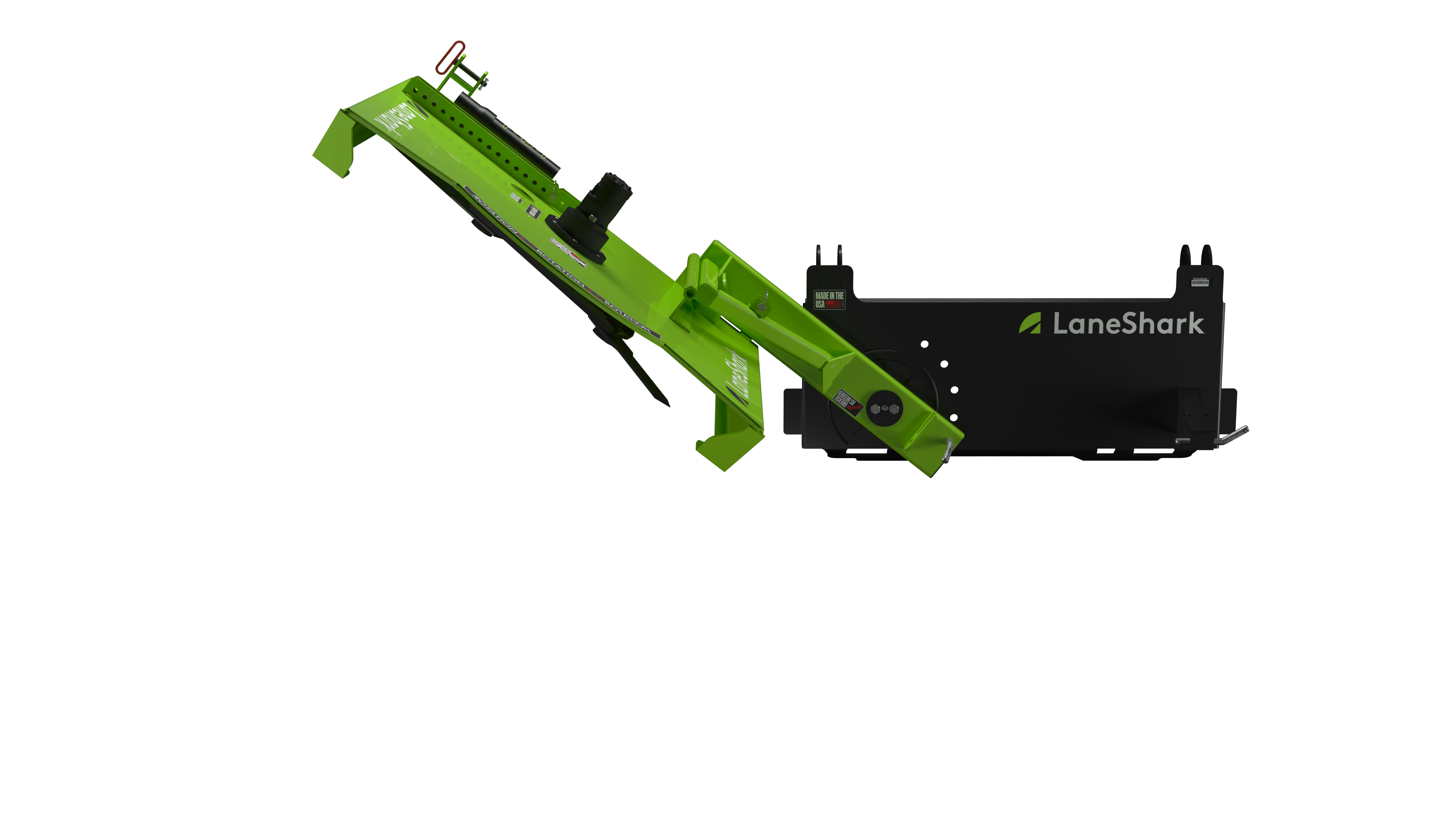

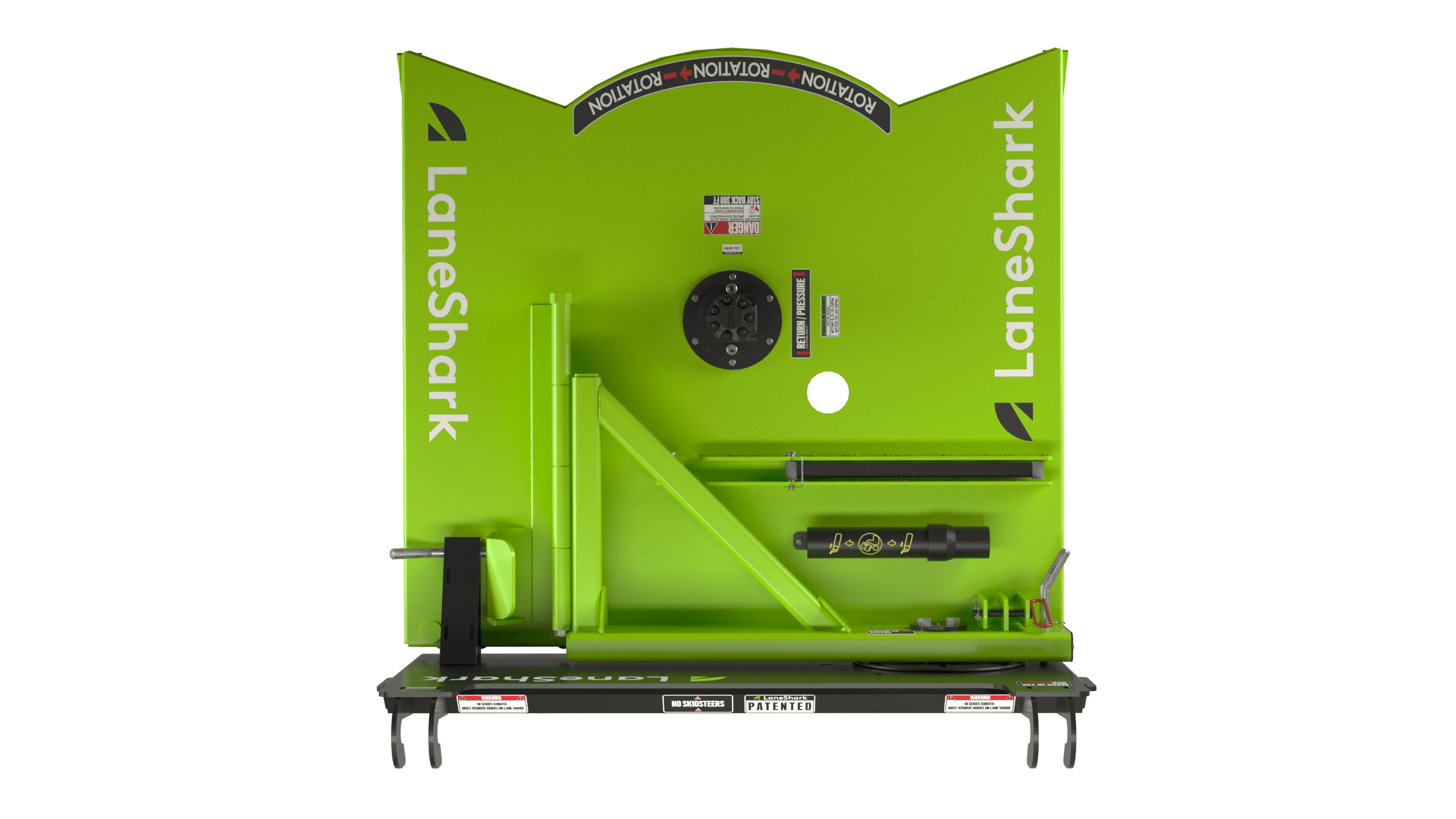

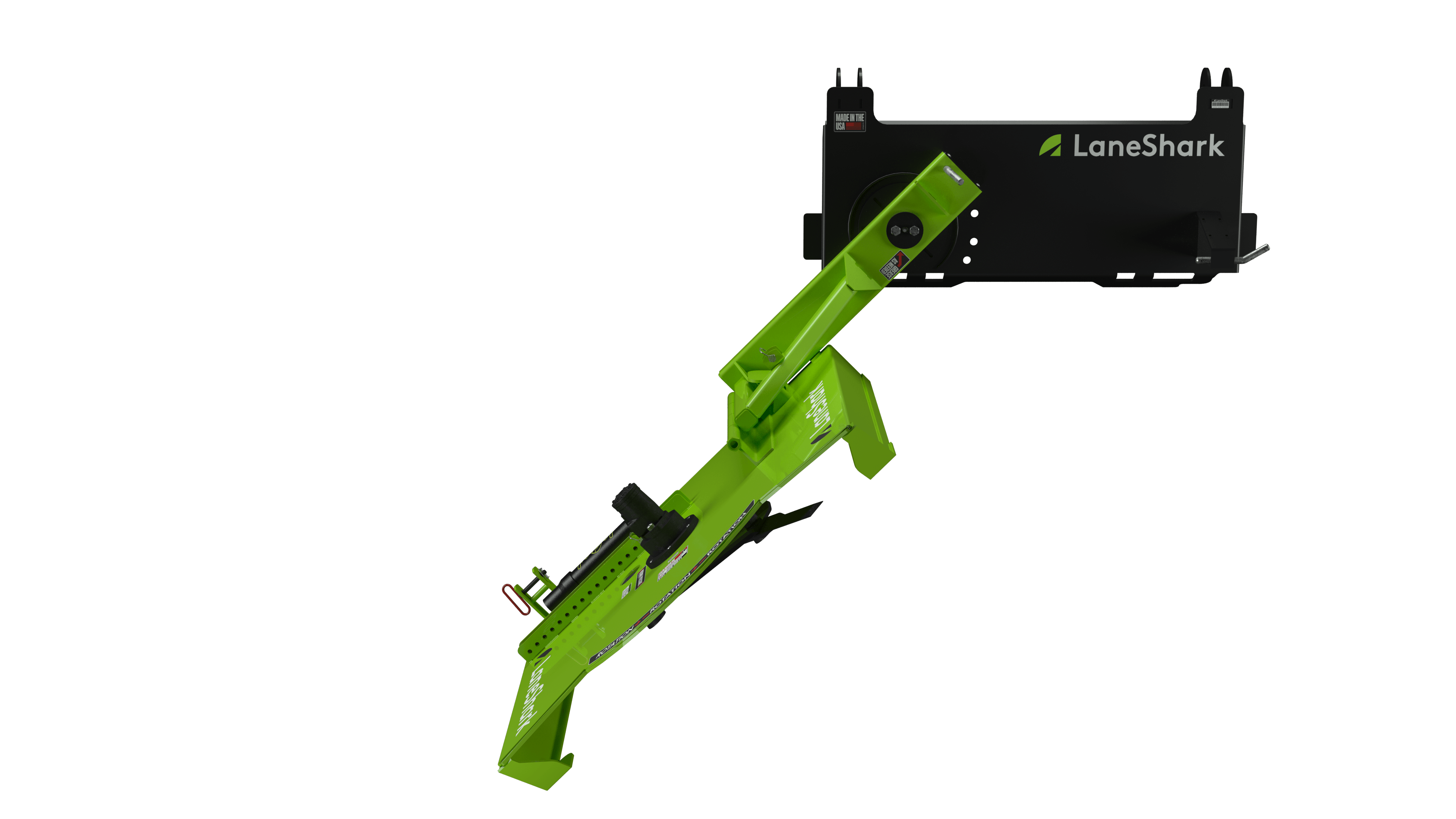

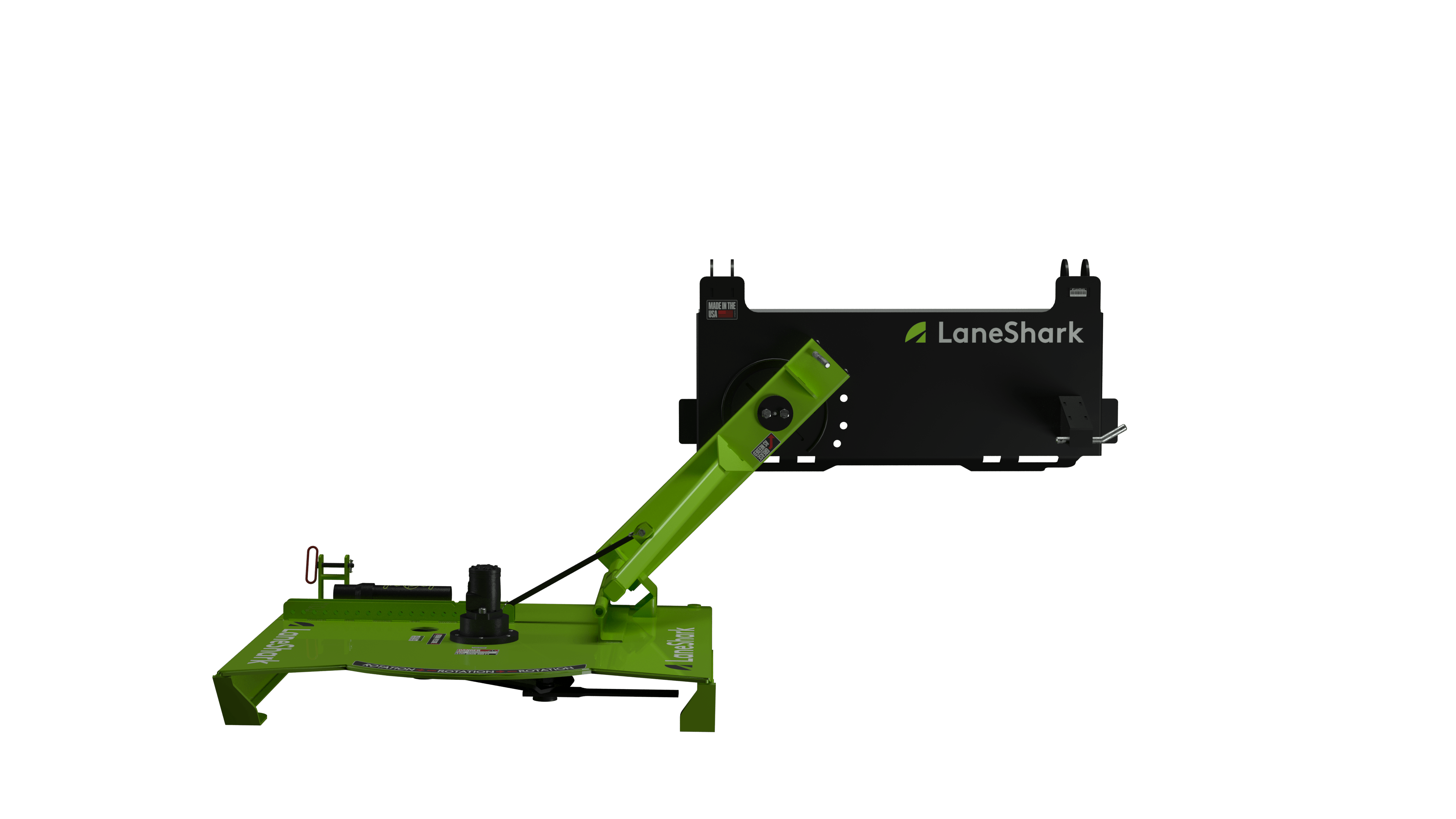

• Easily cuts up to 2-3” diameter limbs, brush, saplings, and underbrush. The Lane Shark has 60+ positions that allow it to cut vertically, offset, directly in front (level), or 25°, 35°, & 45° in the vertical and offset positions
• Multi-position adjustment rail for added versatility and an extra foot of vertical extension.
• Rear rubber skirt and skid shoes for a smoother cutting process.

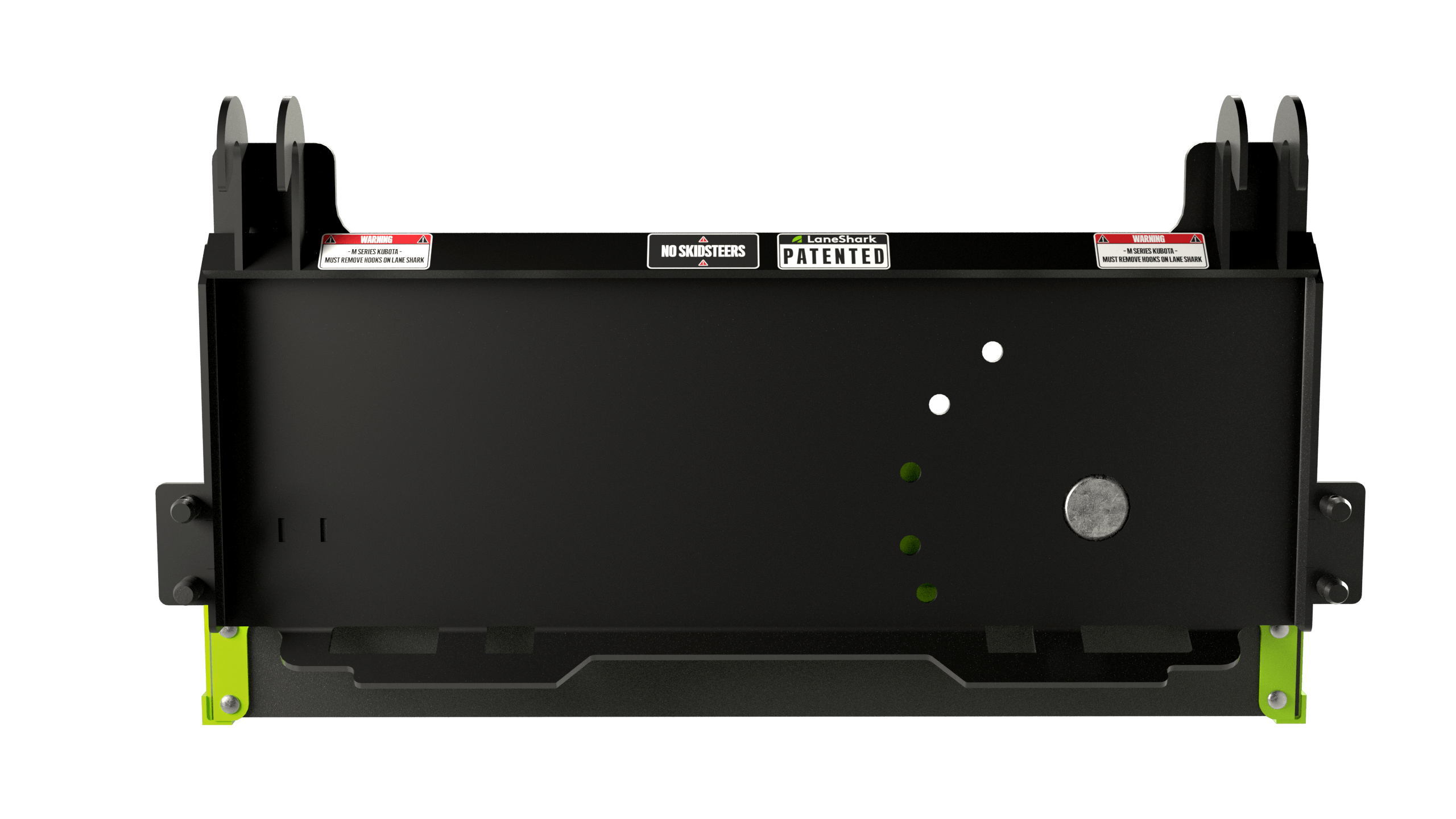

• The Lane Shark LS4 attaches to the front of any FEL tractor with a SSQA or JD Hook & Pin-Style attachment system. There are adapters available to fit most other applications sold separately.
• The Lane Shark LS4 weighs just under 450 lbs.
• When purchasing the Lane Shark brush cutter, you will receive a unit equipped with #10 ORB (O-ring Boss) inlets. When using ORB, a minimum inside diameter of 1/2” is required.
Compatibility
• Hydraulic impement flow rate 5gpm to 8.5gpm - Standard motor
• Hydraulic implement flow rate 8.6gpm to 15gpm - High capacity motor (Special Order Only)
• Third function or Lane Shark valve kit. ONLY pressure comes from the remote, and return must be to the sump. (CANNOT RETURN THROUGH AUXILIARY HYDRAULICS)
• We do not recommend rear remote plumbing as some tractors may lose loader priority
• NOT COMPATIBLE WITH DIVERTER VALVES
• NOT COMPATIBLE WITH SKID STEERS
• Minimum dry tractor weight 2000lbs
• Minimum tractor width 55 inches
• Certified roll over protection system
• For stabilization while operating the Lane Shark, fill rear tires of your tractor with water for use as a ballast, as well as additional weight on rear. ie: box blade, or rotary cutter.
Details

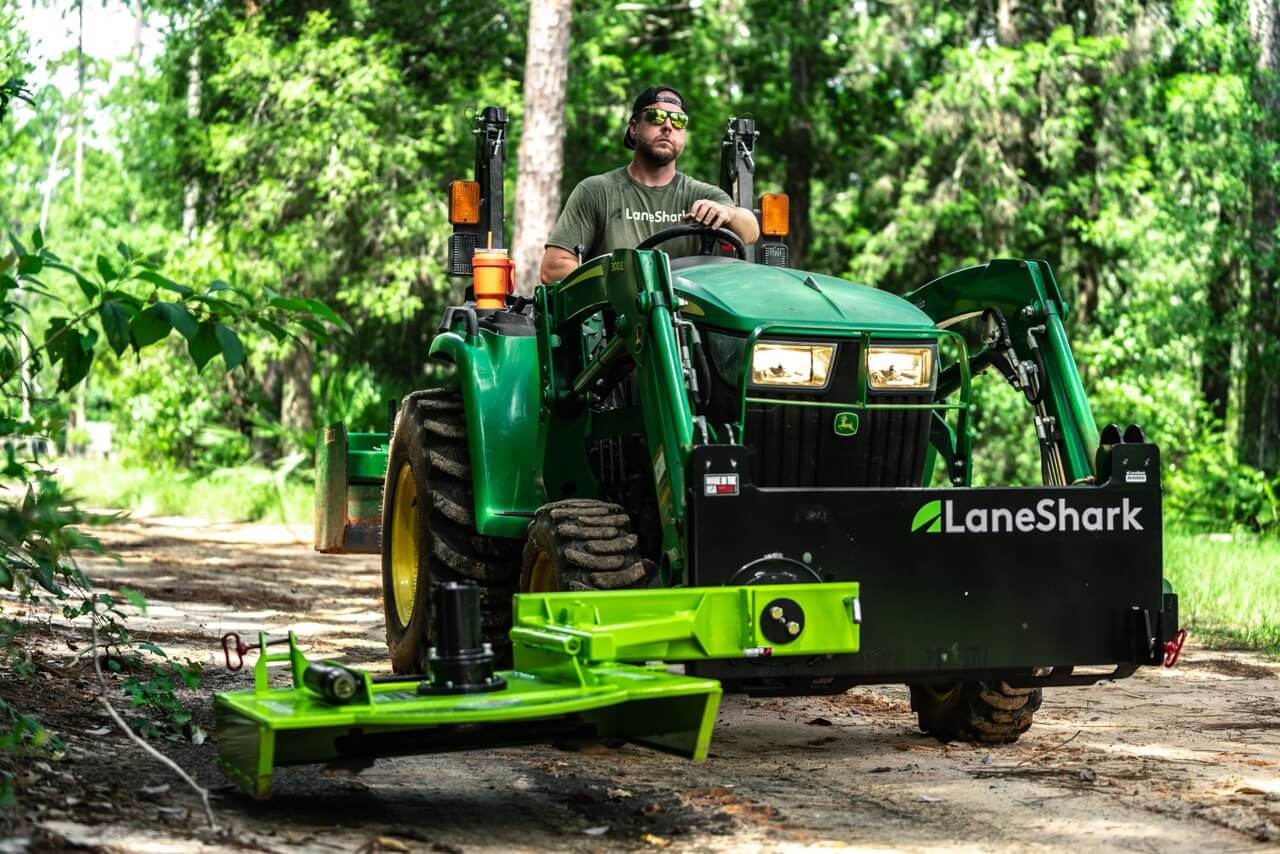

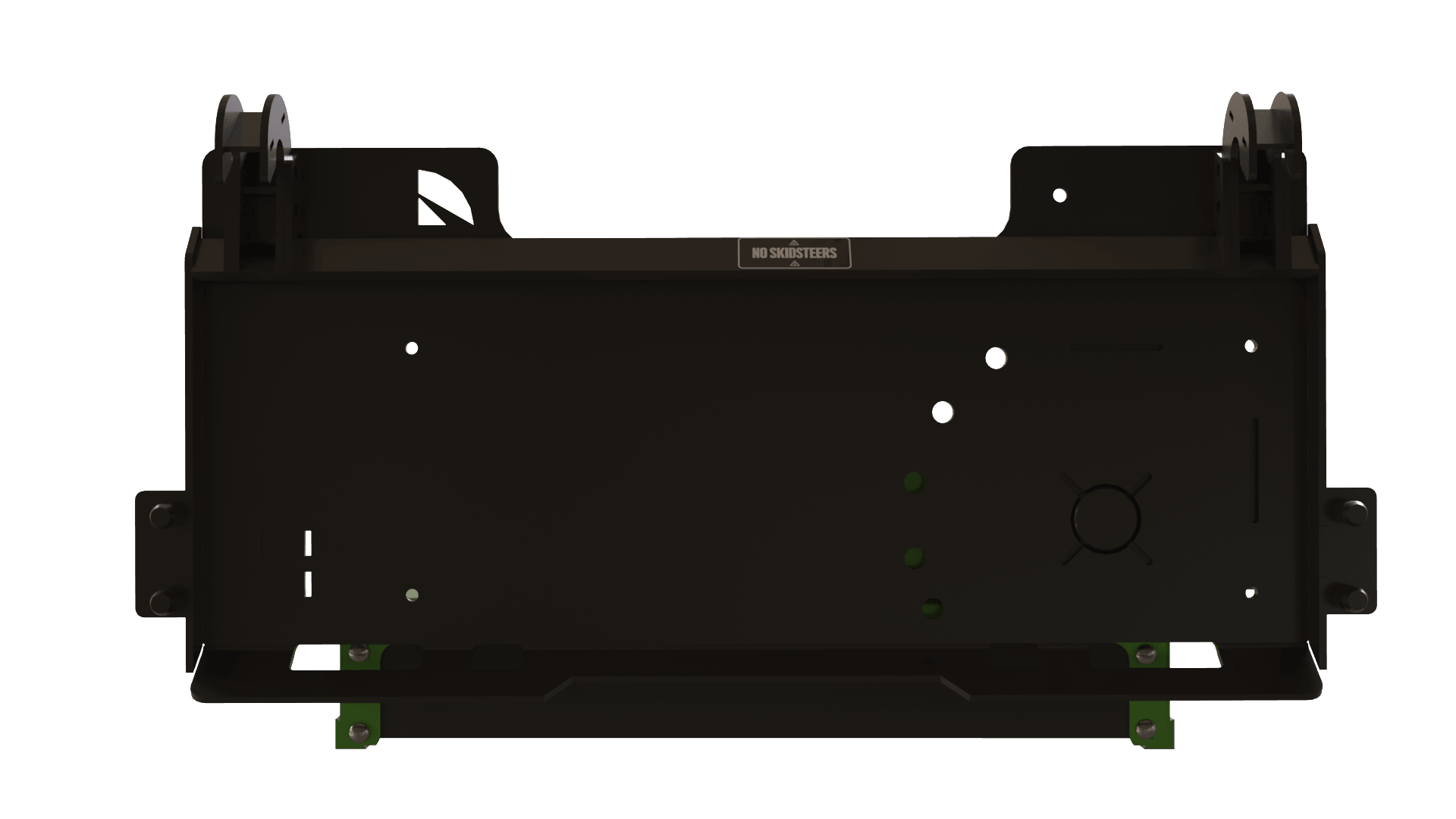

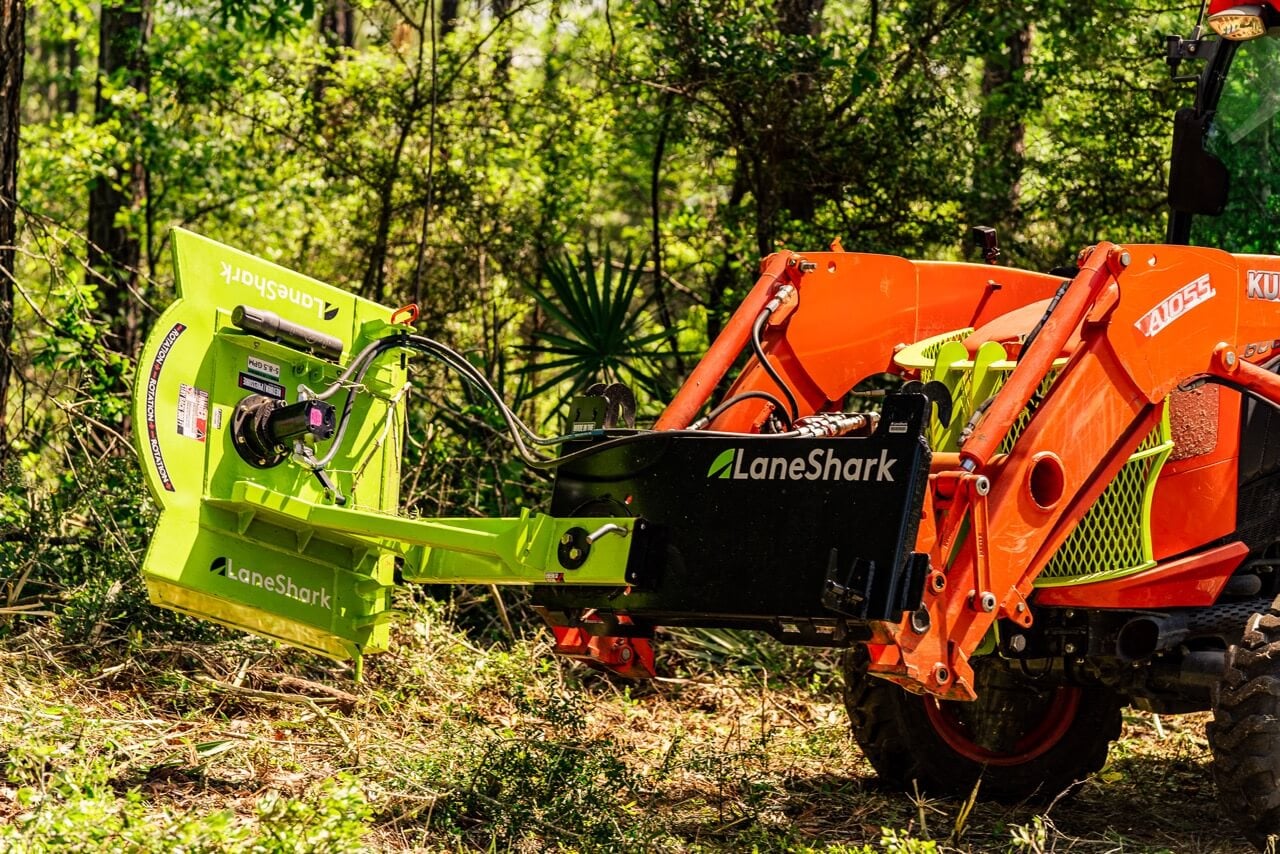

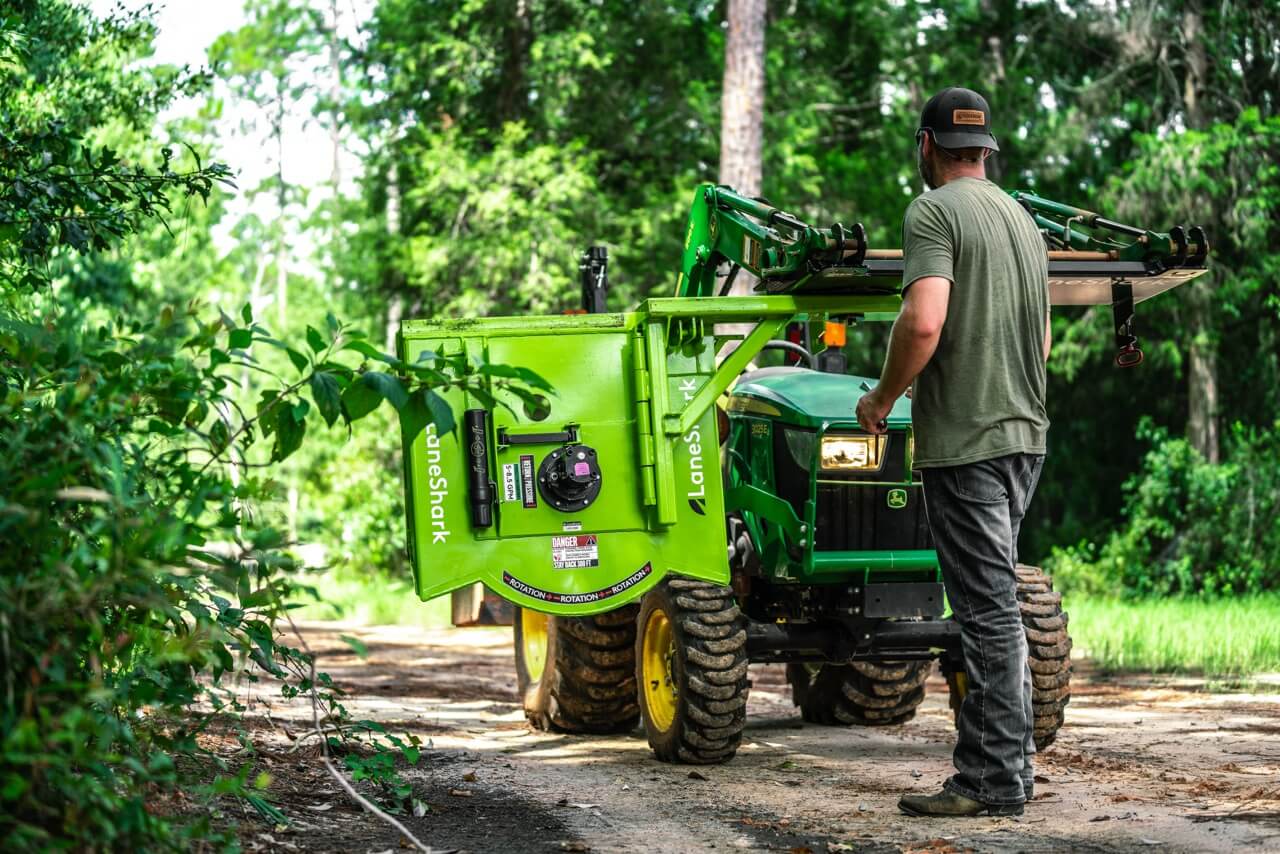

• The Lane Shark LS-3 is a light duty rotary cutter designed to clear overgrown roadways, for light land management, and property maintenance.

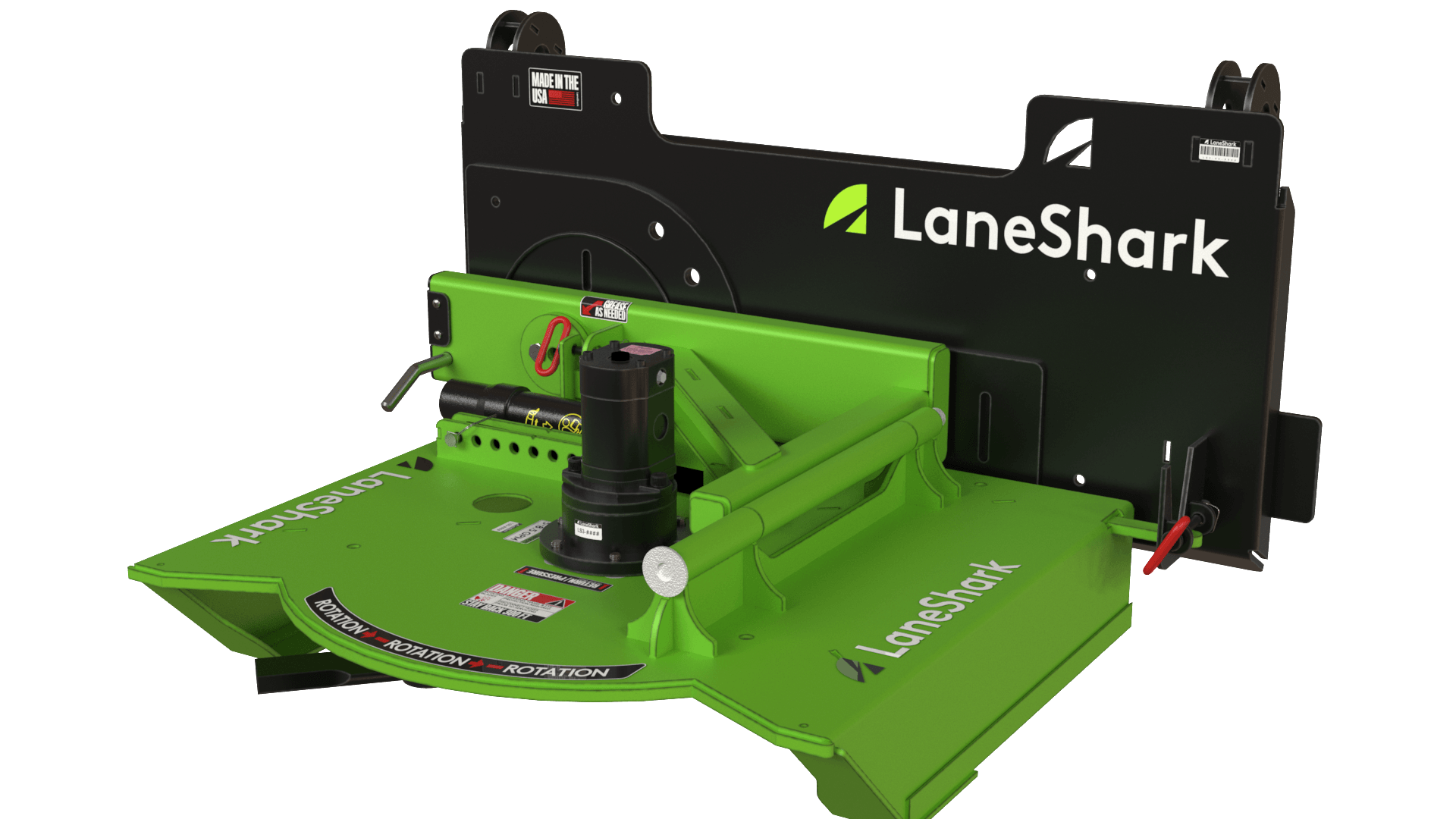

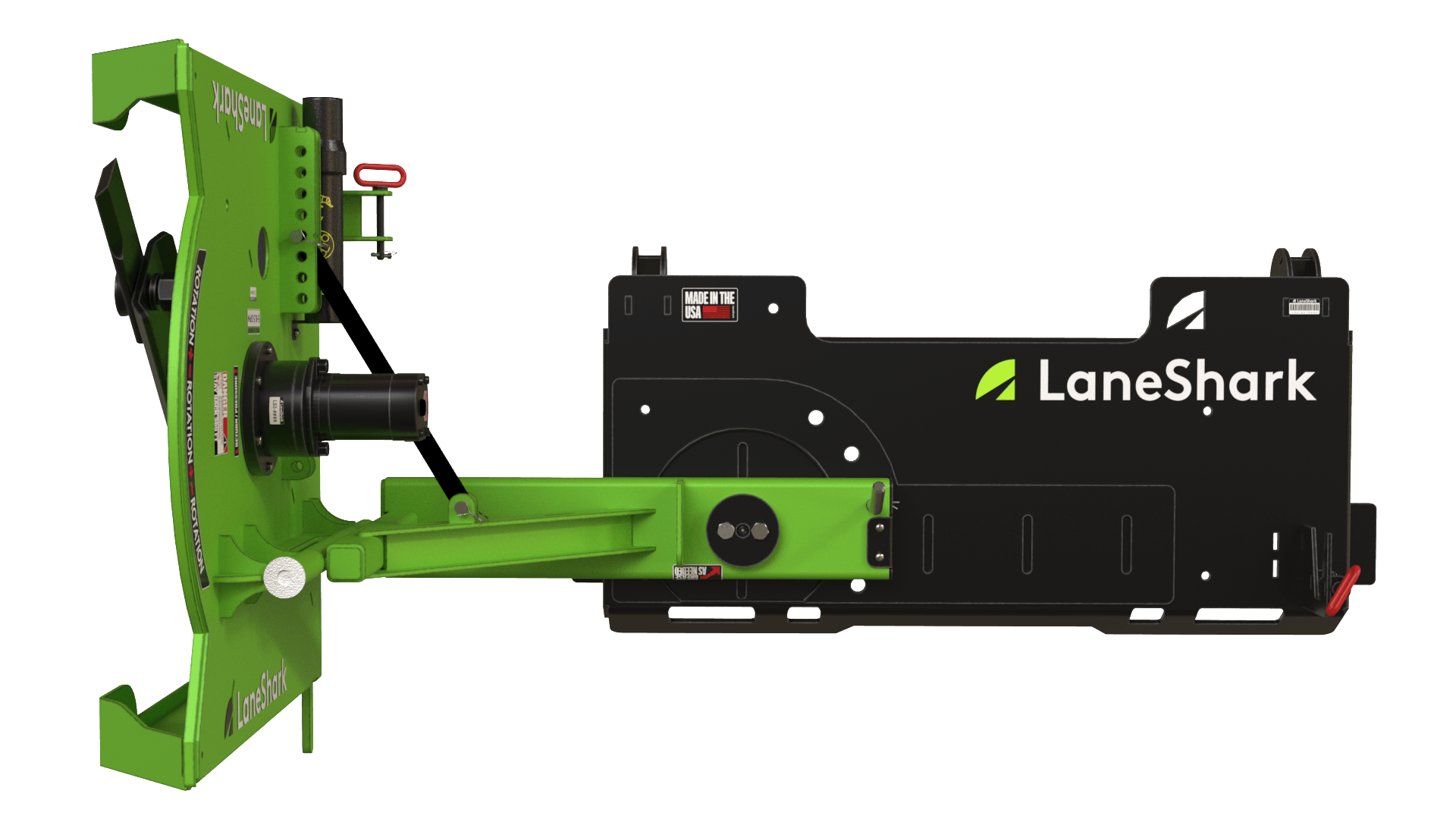

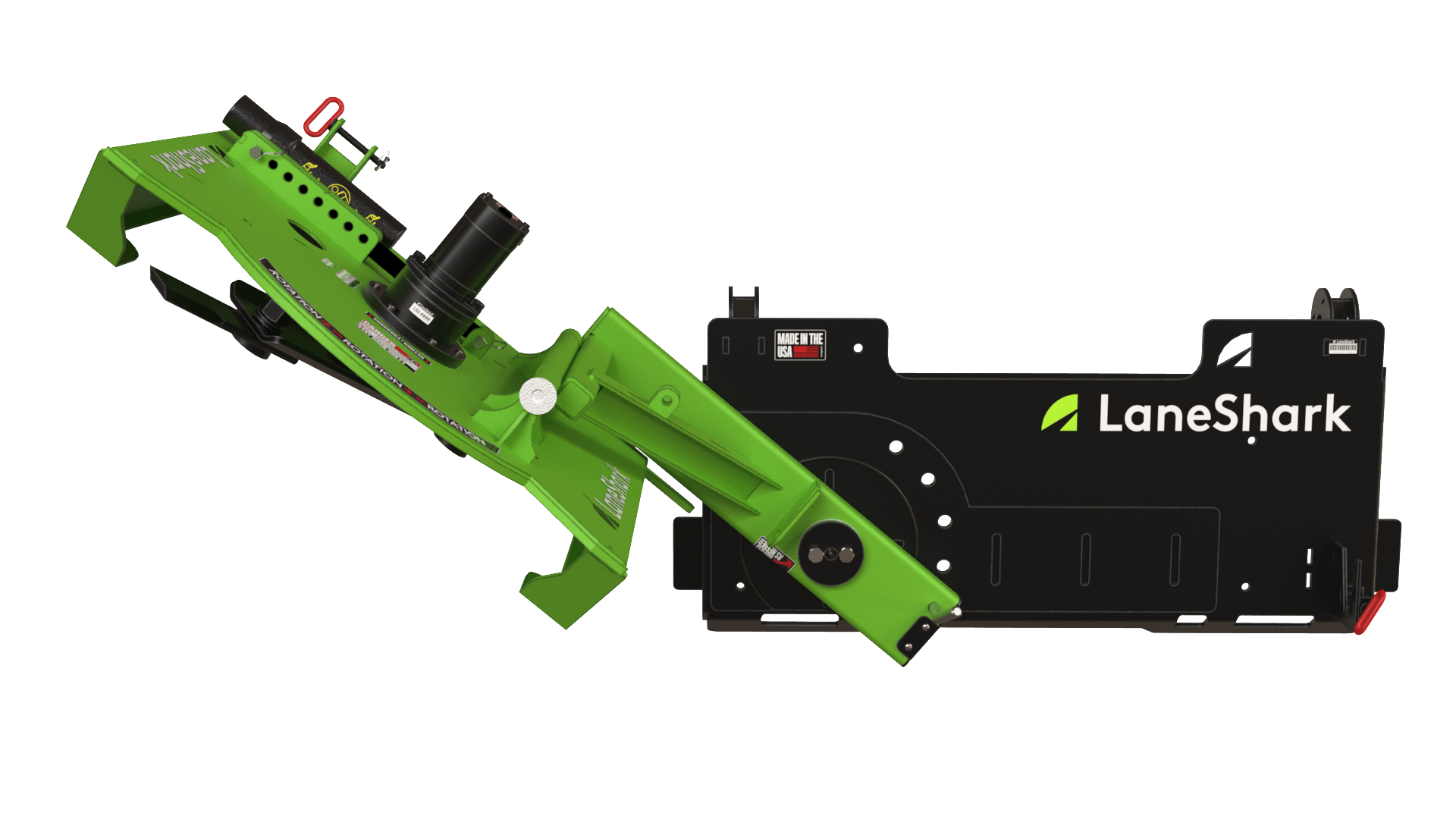

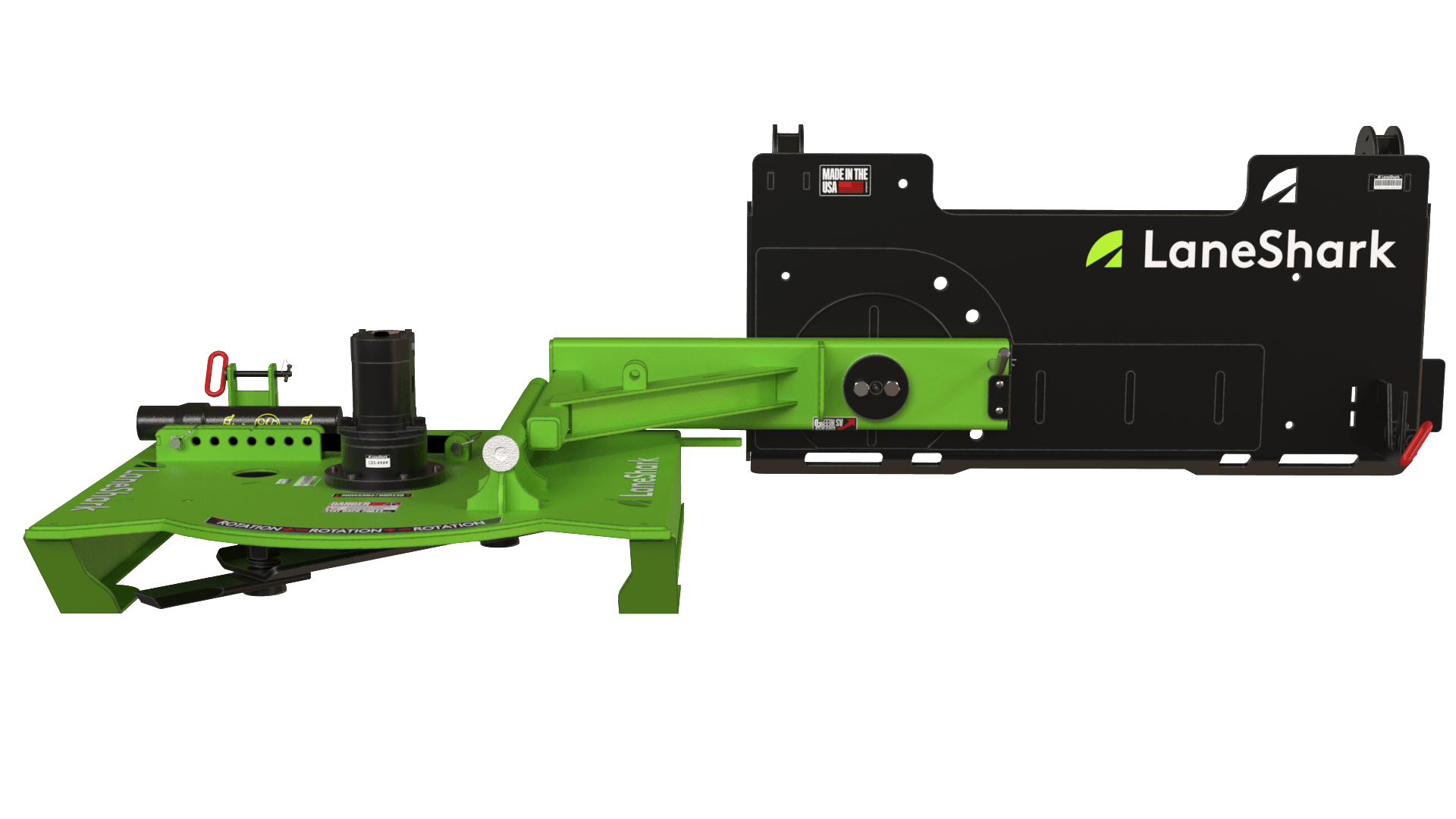

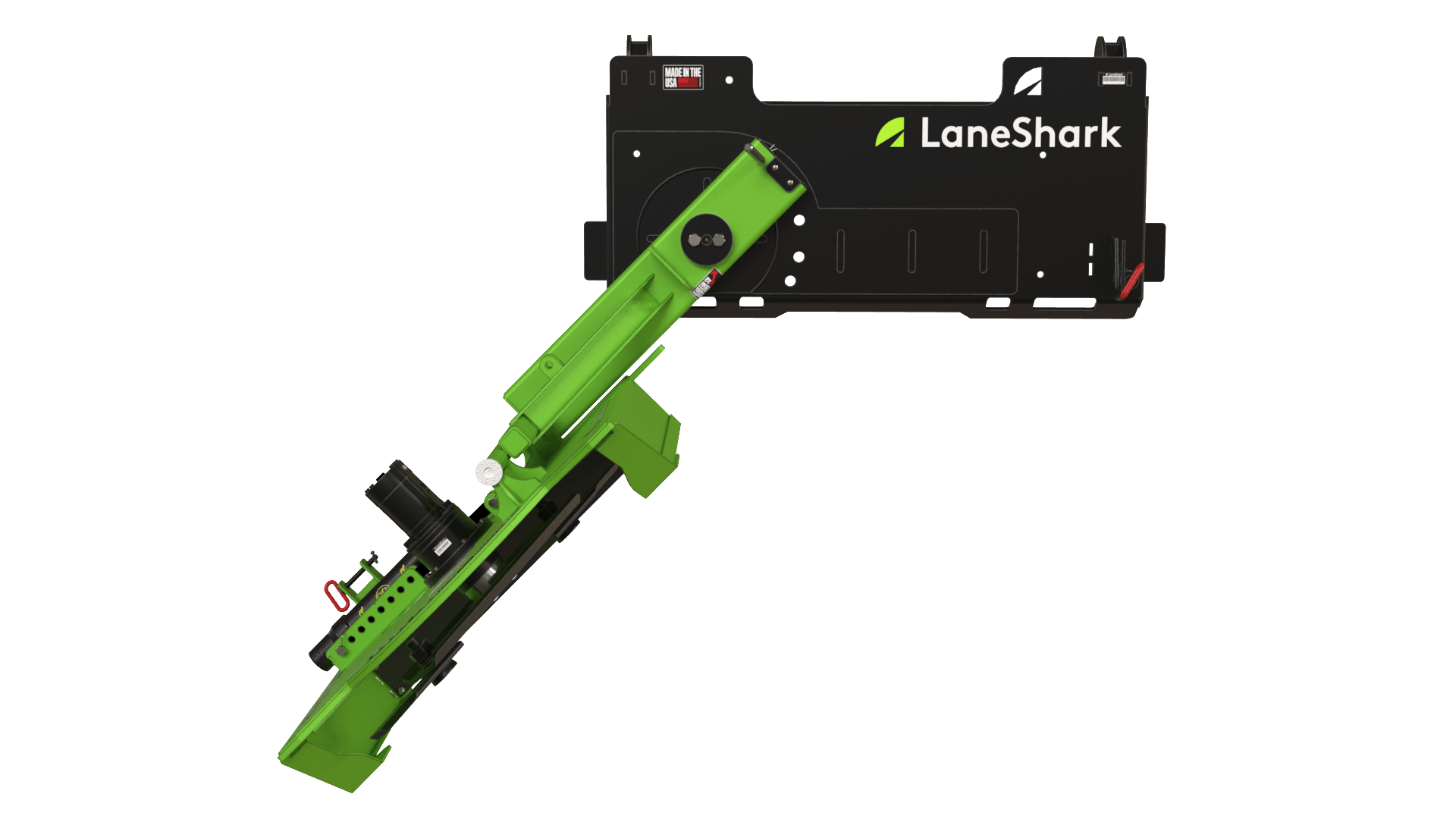

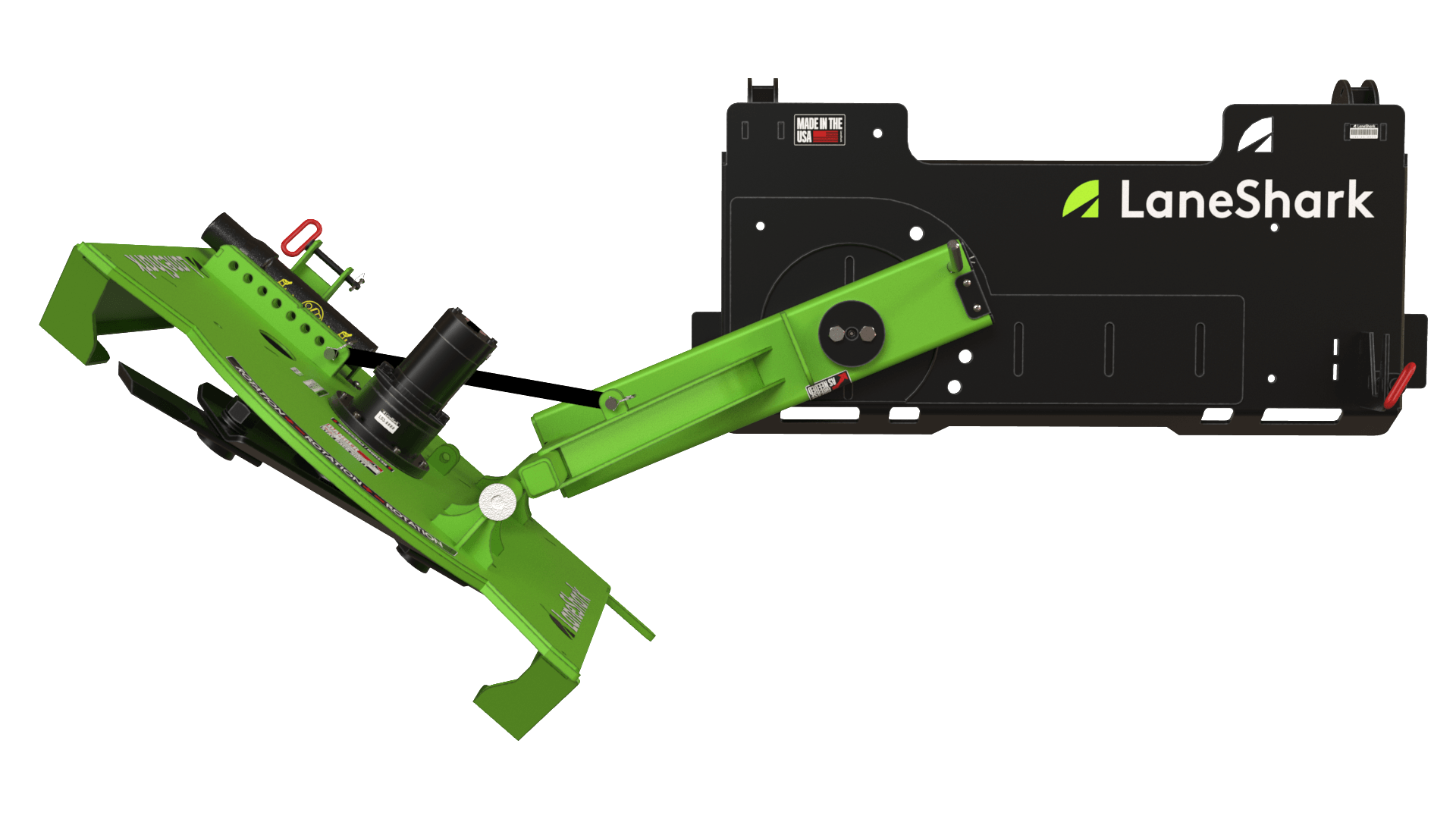

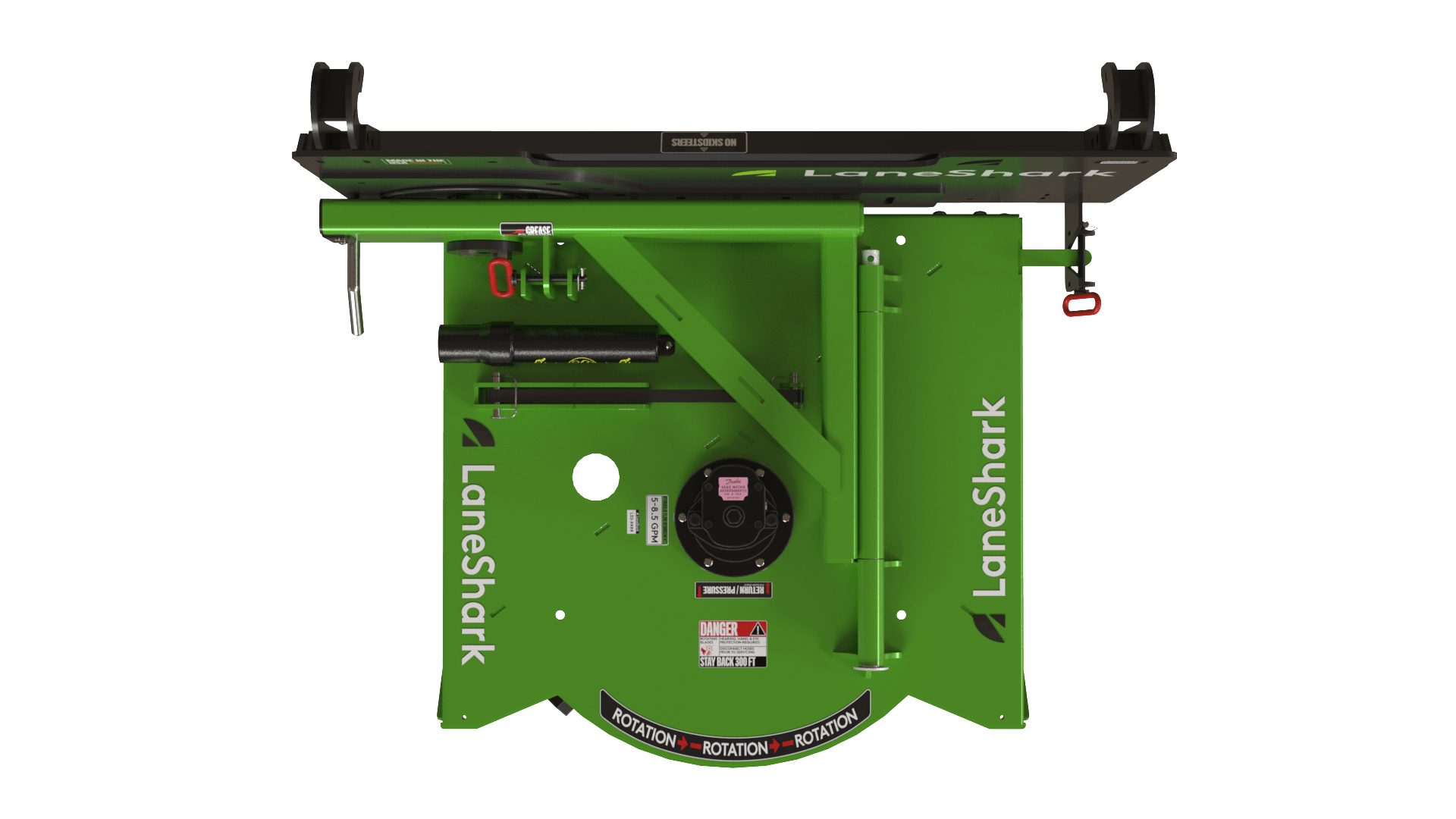

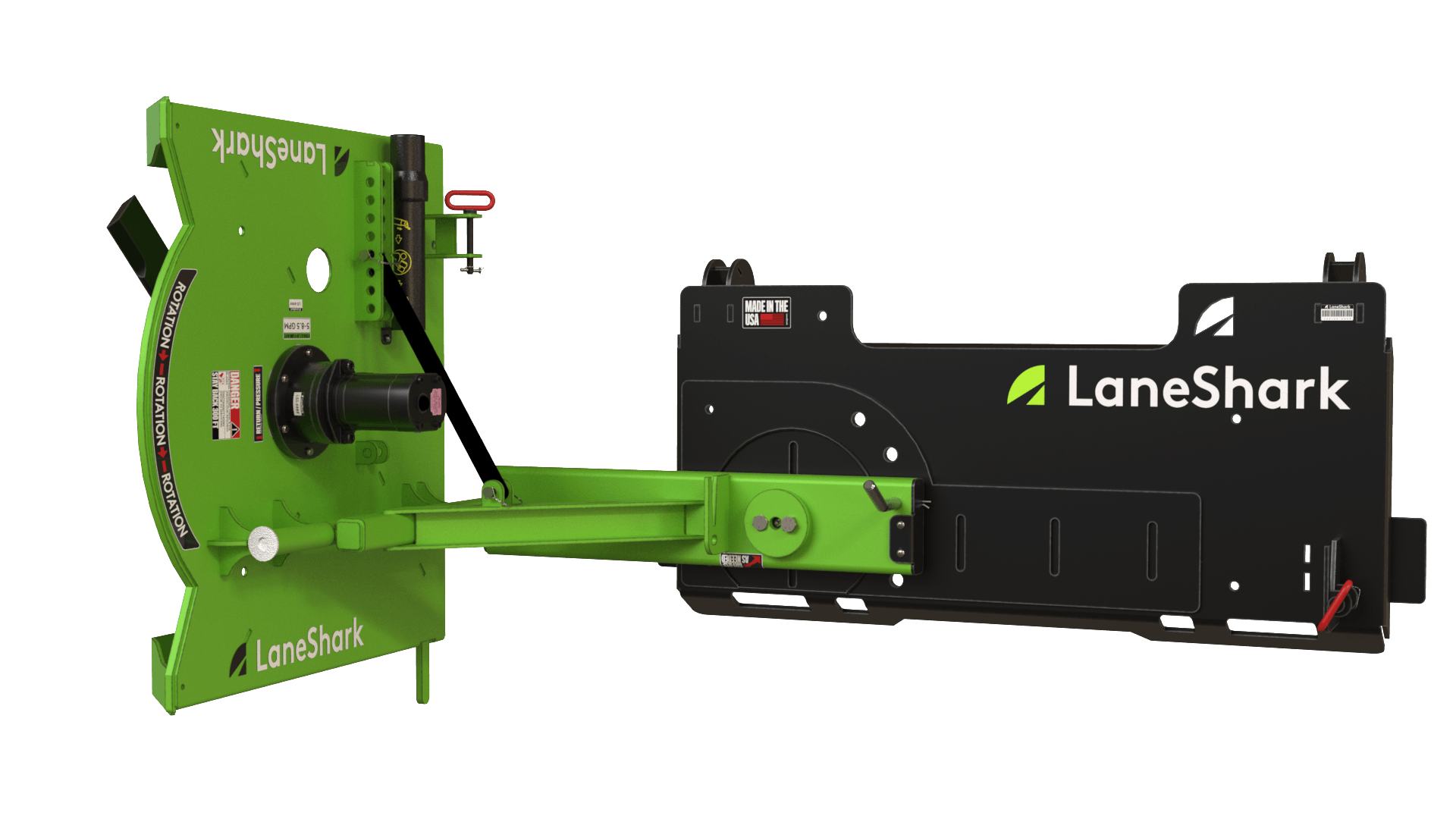

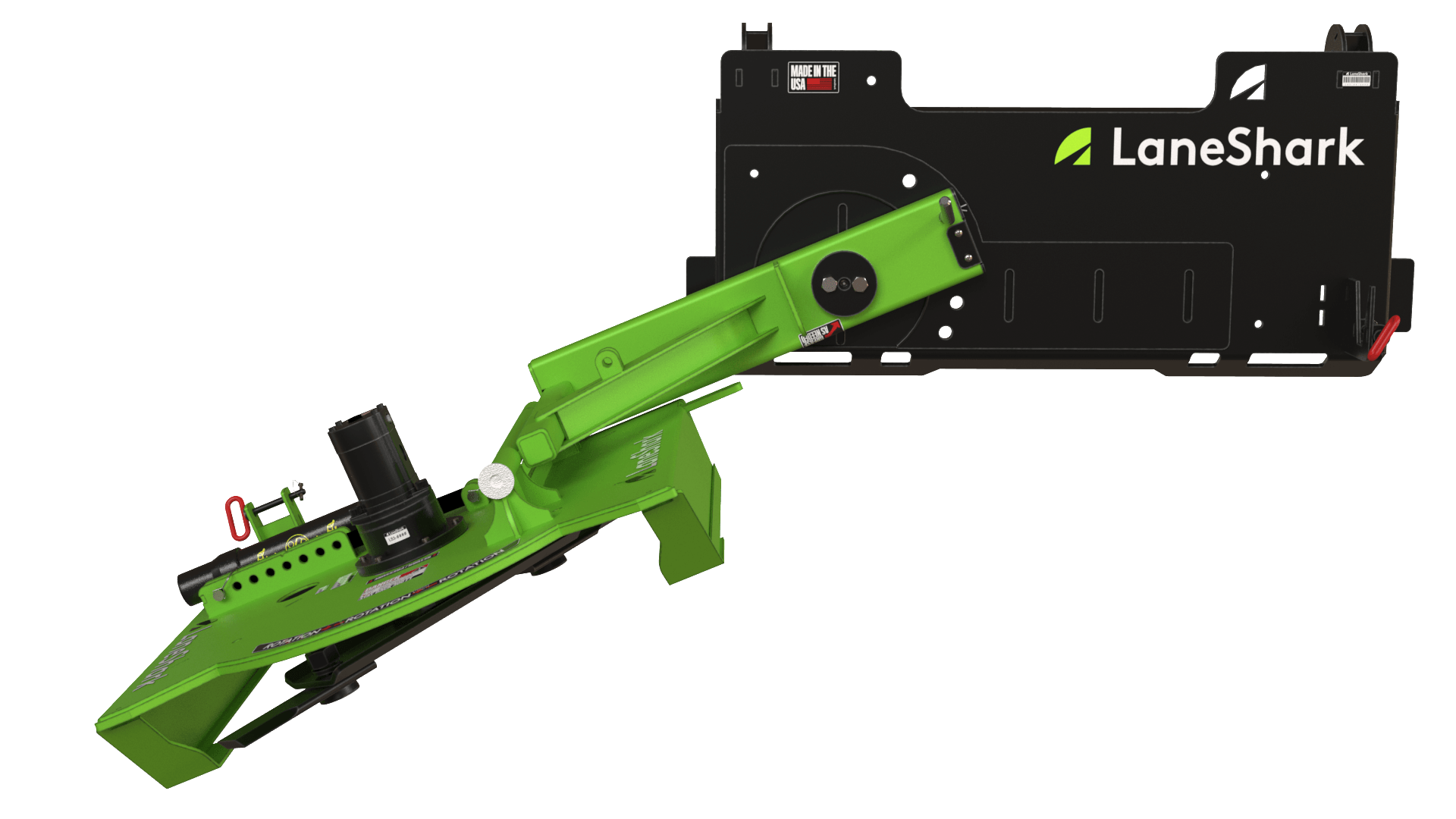

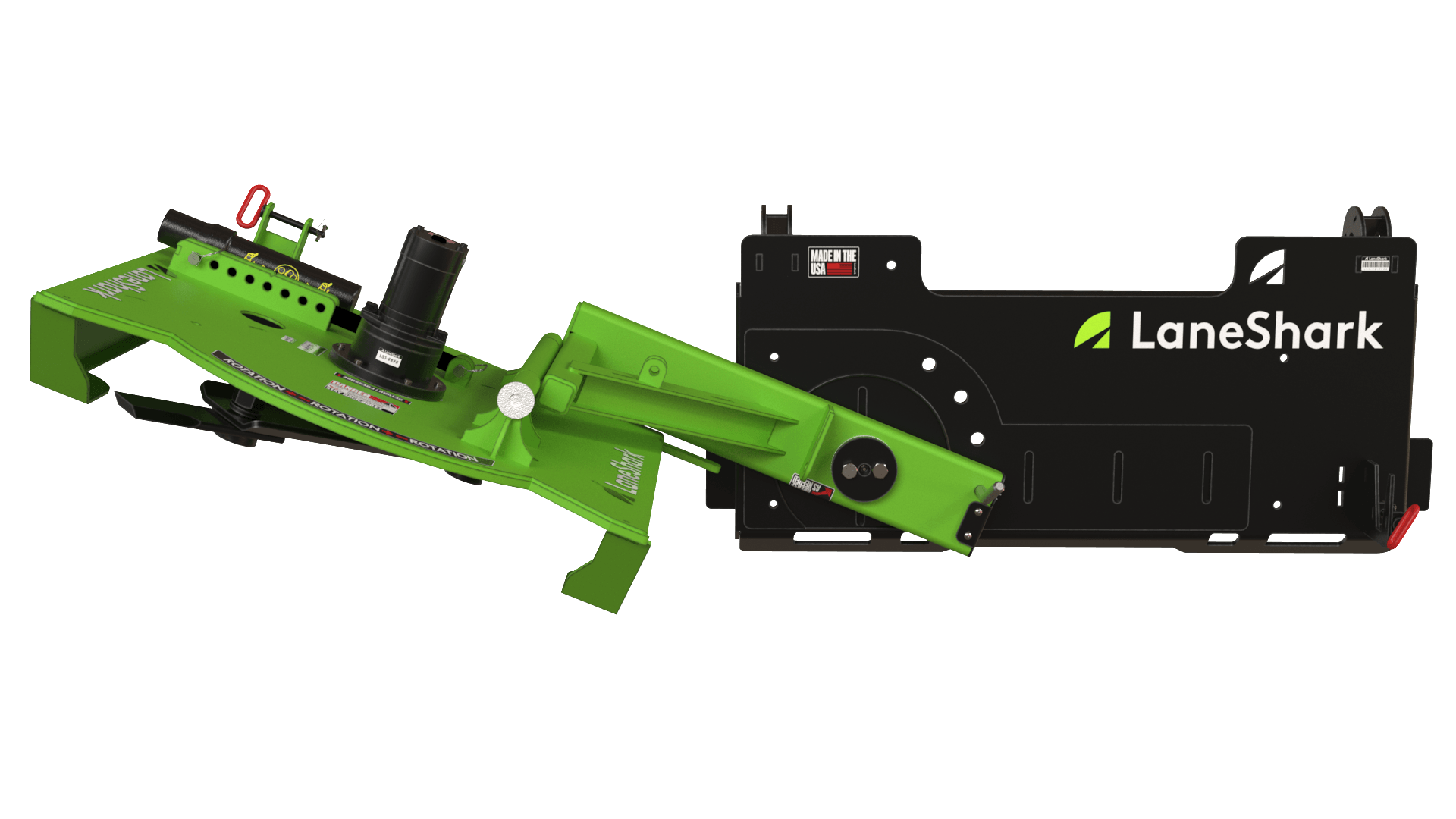

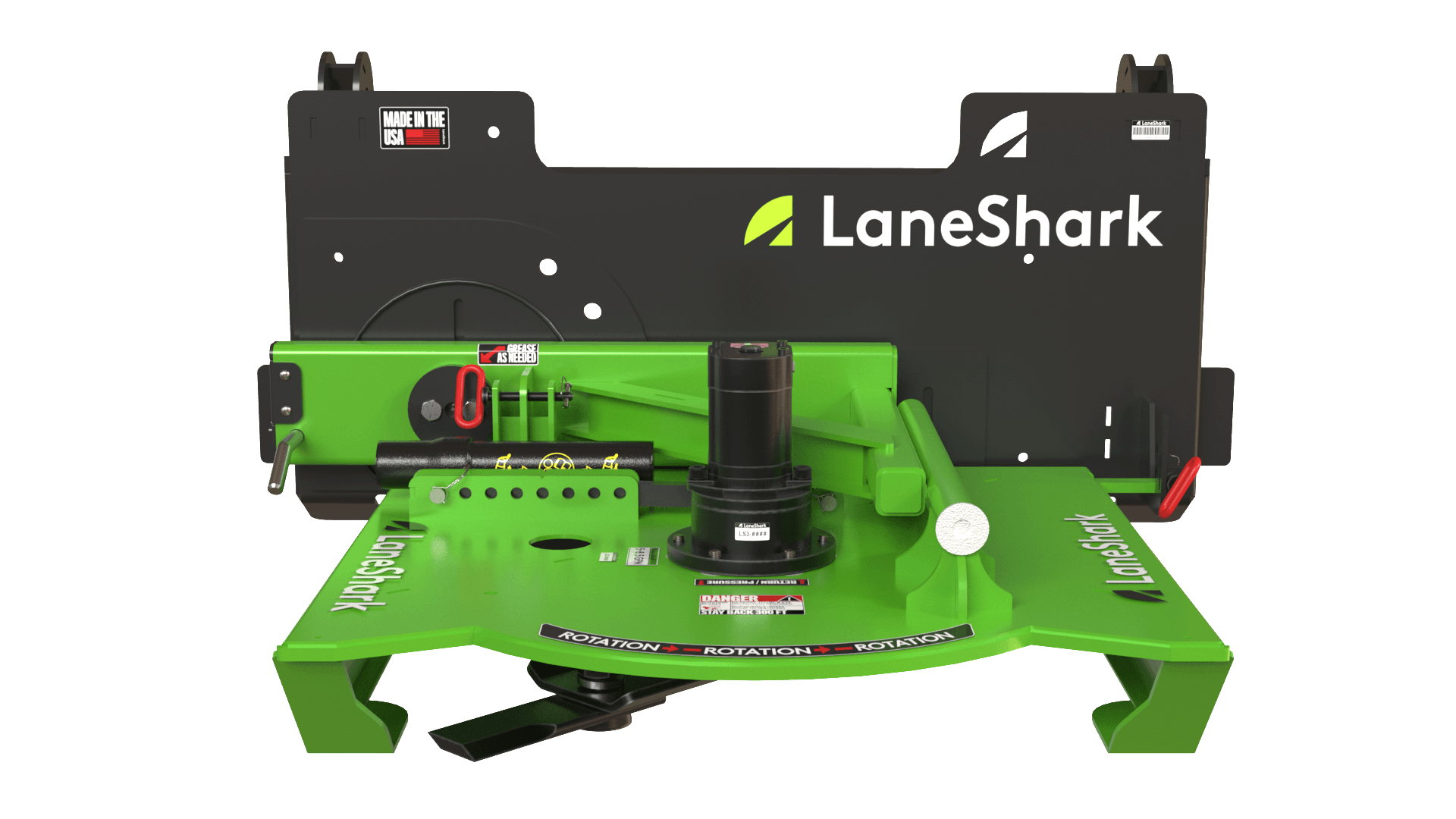

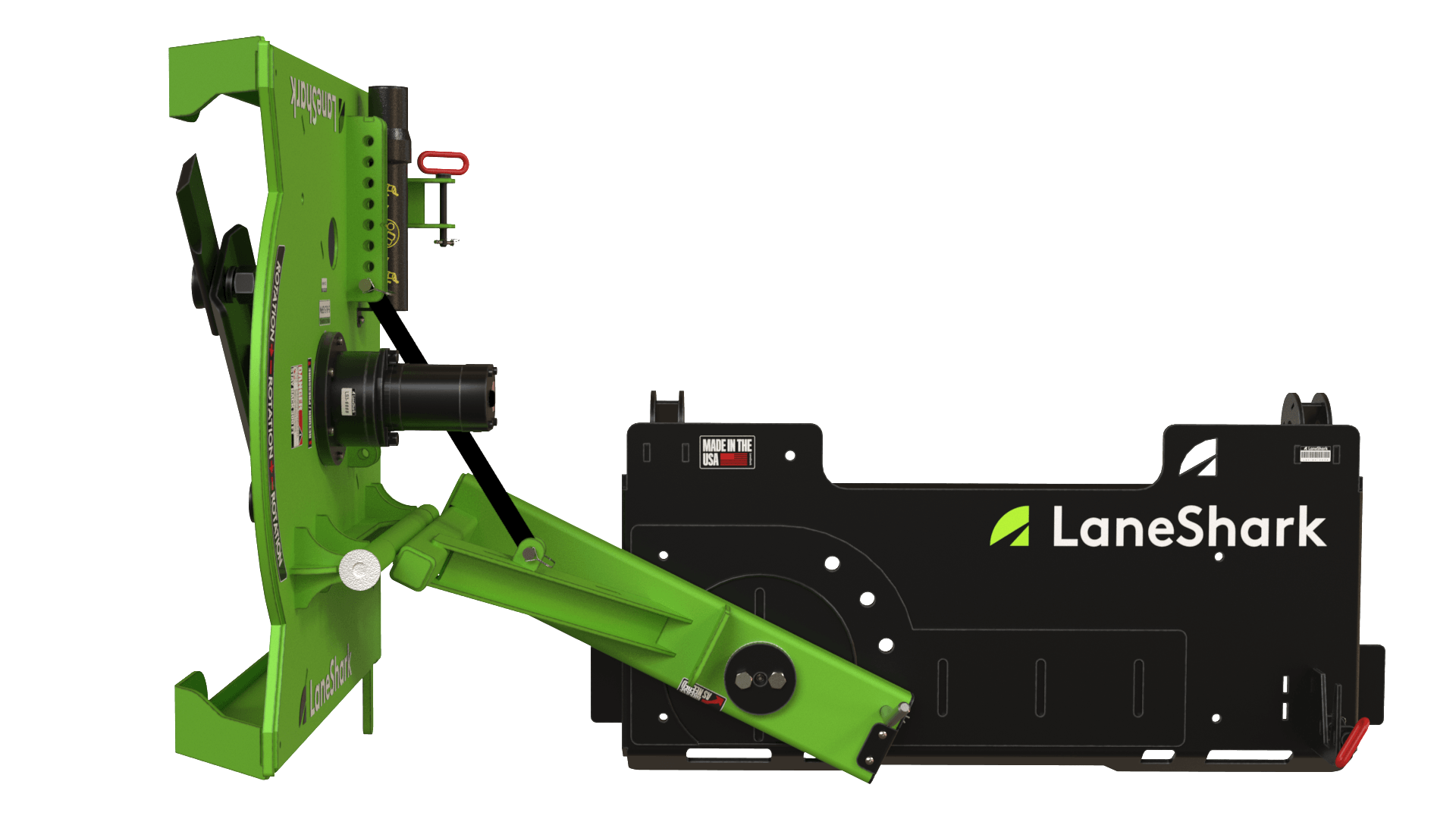

• Easily cuts up to 2-3” diameter limbs, brush, saplings, and underbrush. The Lane Shark has 11 positions that allow it to cut vertically, offset, directly in front (level), or 25°, 35°, & 45° in the vertical and offset positions.
• The Lane Shark LS-3 attaches to the front of any FEL tractor with a SSQA or JD Hook & Pin-Style attachment system. There are adapters available to fit most other applications sold separately.
• The Lane Shark LS-3 weighs just under 320 lbs.
• When purchasing the Lane Shark LS-3 brush cutter, you will receive a unit equipped with #10 ORB (O-ring Boss) inlets. When using ORB, a minimum hose inside diameter of 3/8” is required.
Compatibility
• Hammerhead Switch Box included
• Pressure and return whips to tractor loader bulkhead included
• Hydraulic Flow Range: 8.5 gpm to 20 gpm
• Hydraulic third function is required.
• NOT COMPATIBLE WITH REAR REMOTES
• Not compatible with diverter valves or stacked valve third functions - you will lose loader priority. Must exchange for W.R. Long C-Flow Third Function
• Minimum dry weight of 3000 lbs
• Minimum tractor width of 55 inches.
Details

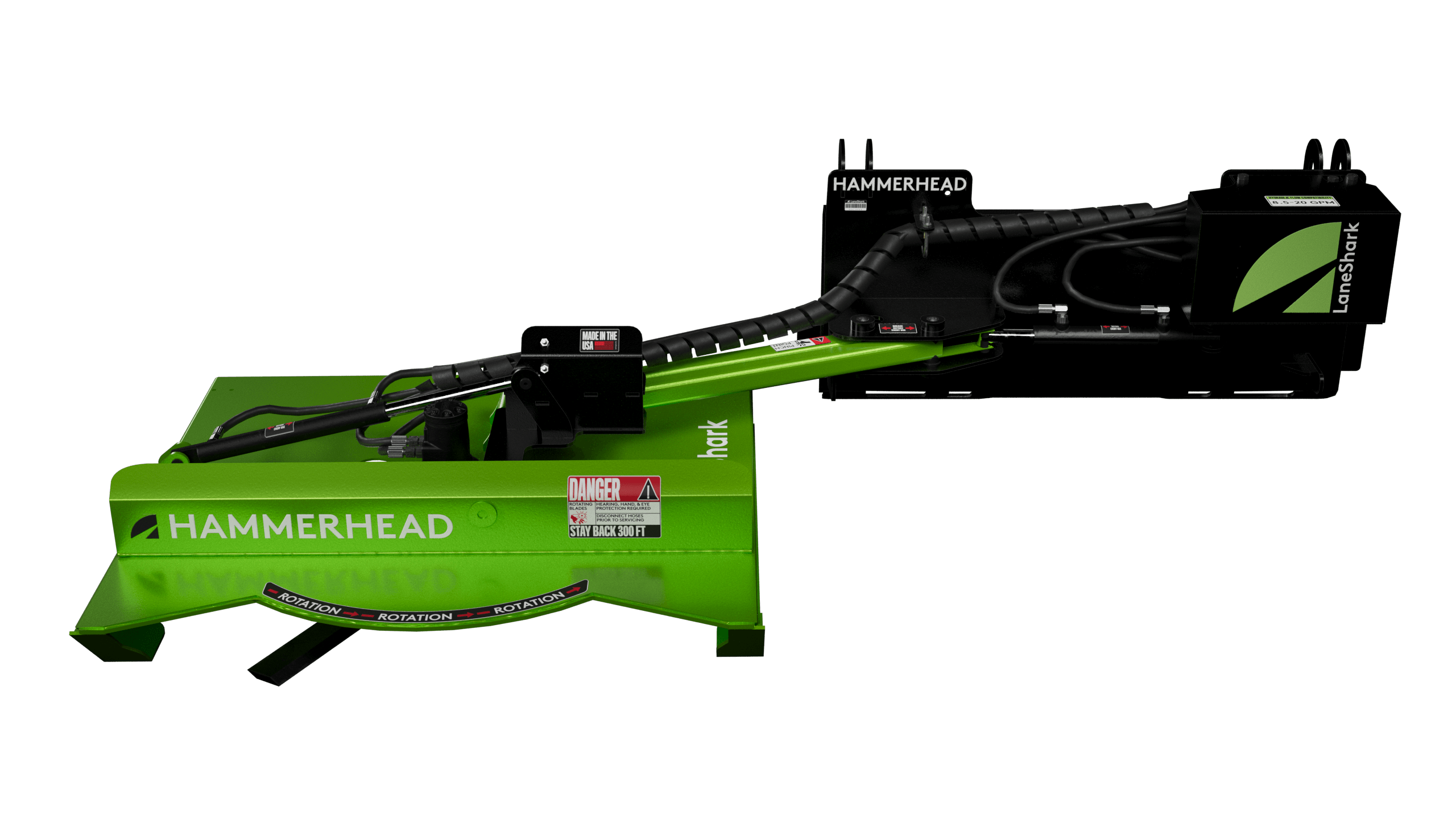

• Engineered for both efficiency and durability

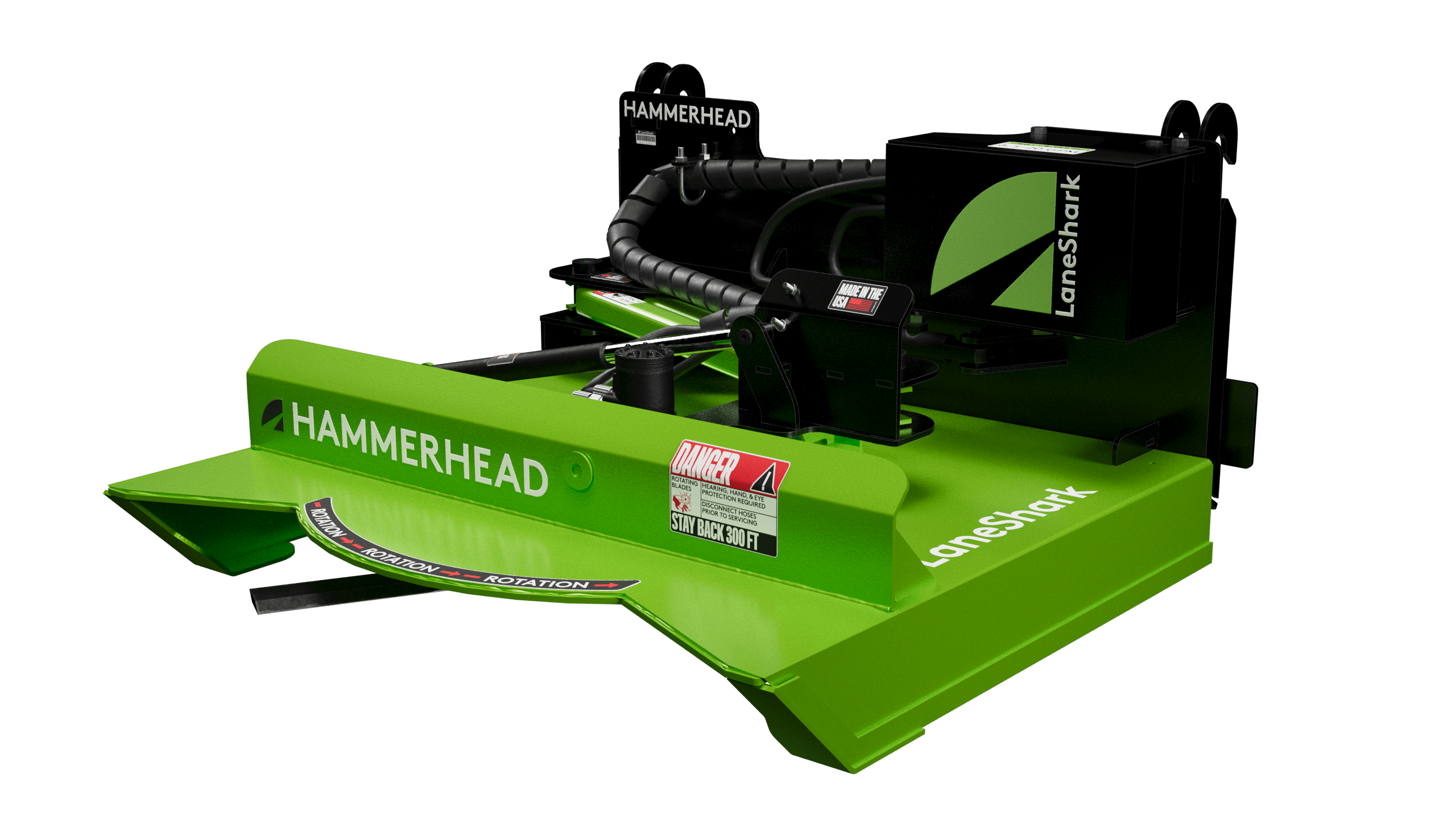

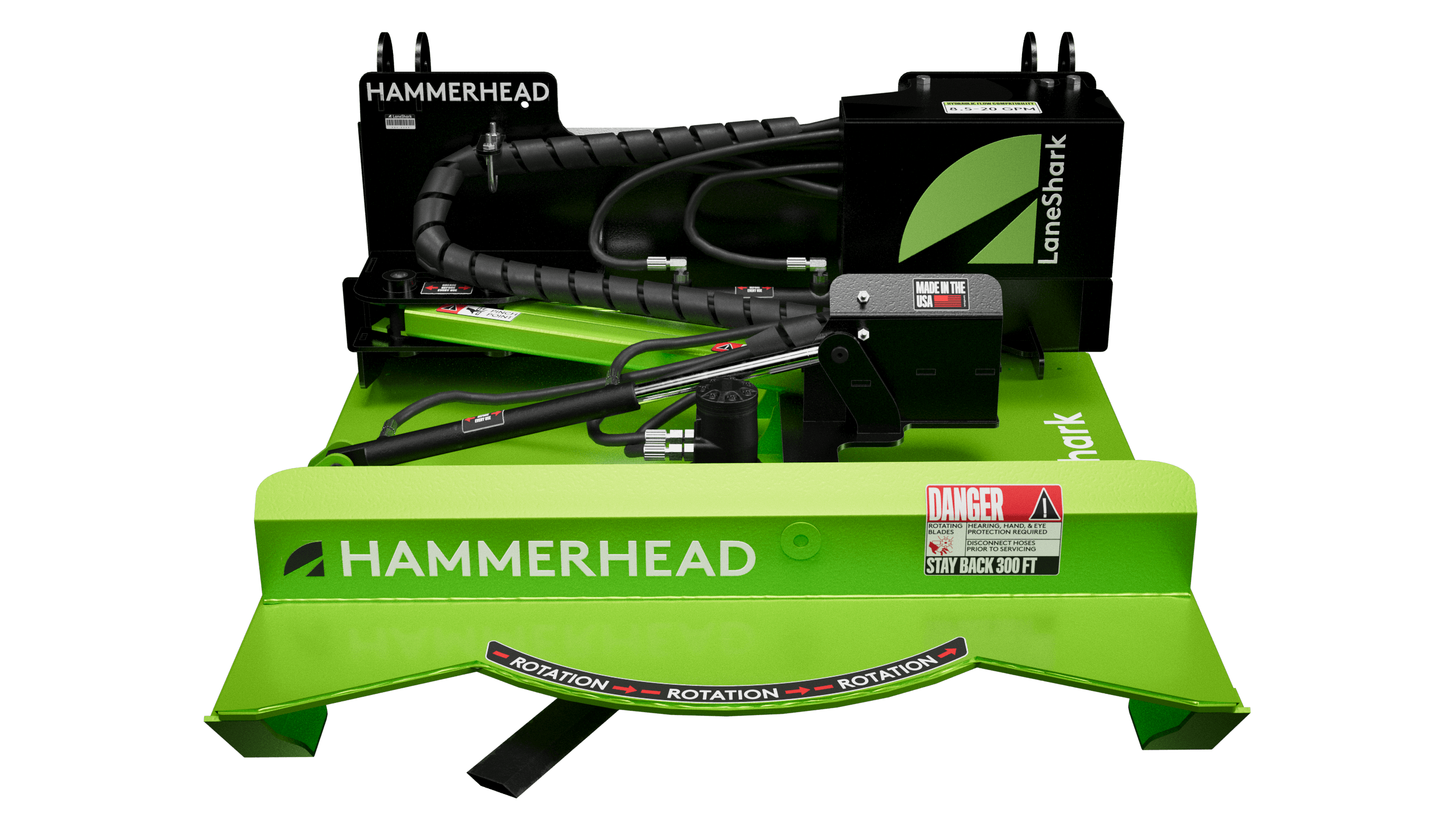

• The Hammerhead offers a 44-inch cutting diameter, accommodating tractors with a minimum weight of 3,000 pounds and a hydraulic flow range of 8.5–20 GPM.

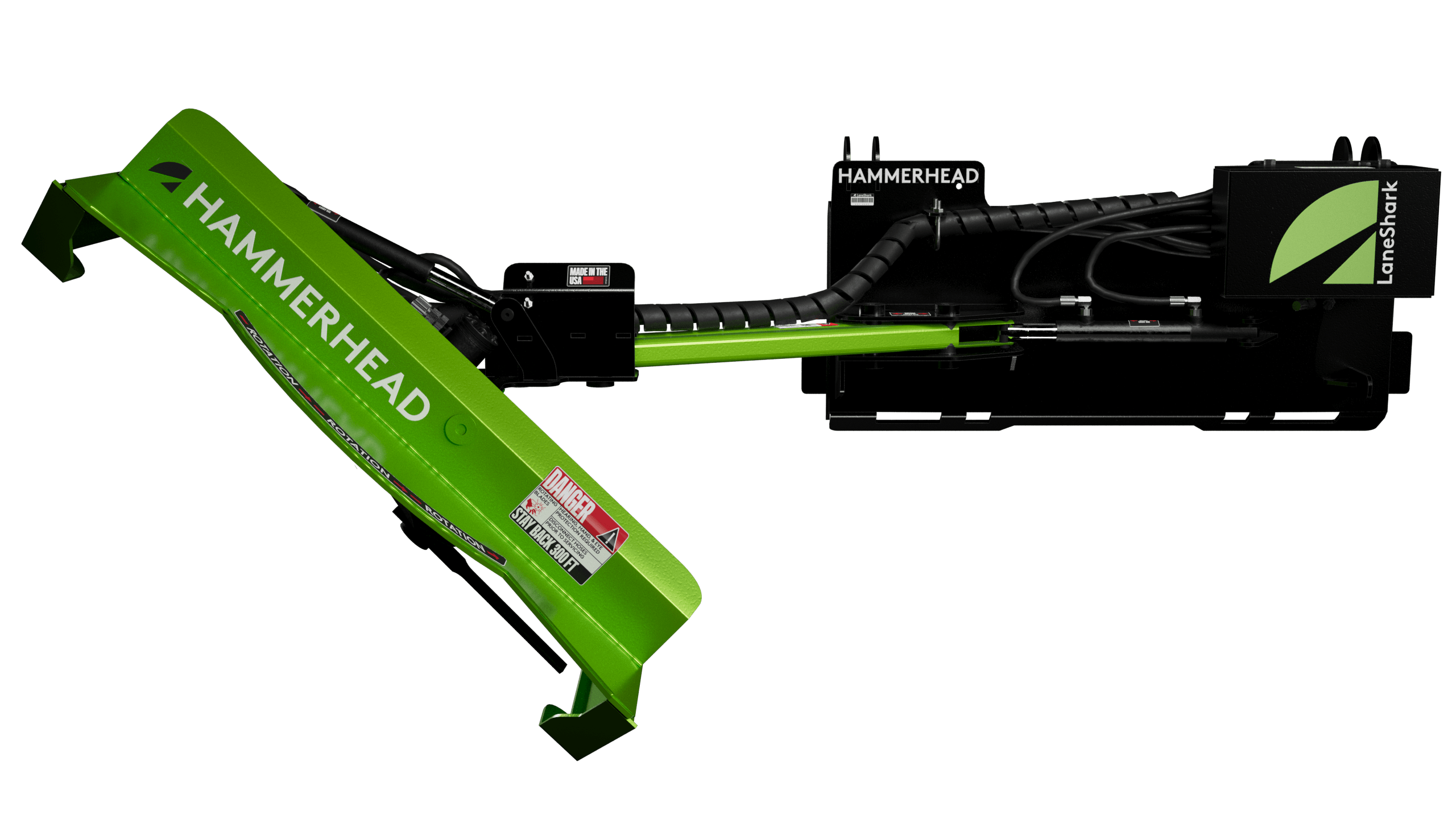

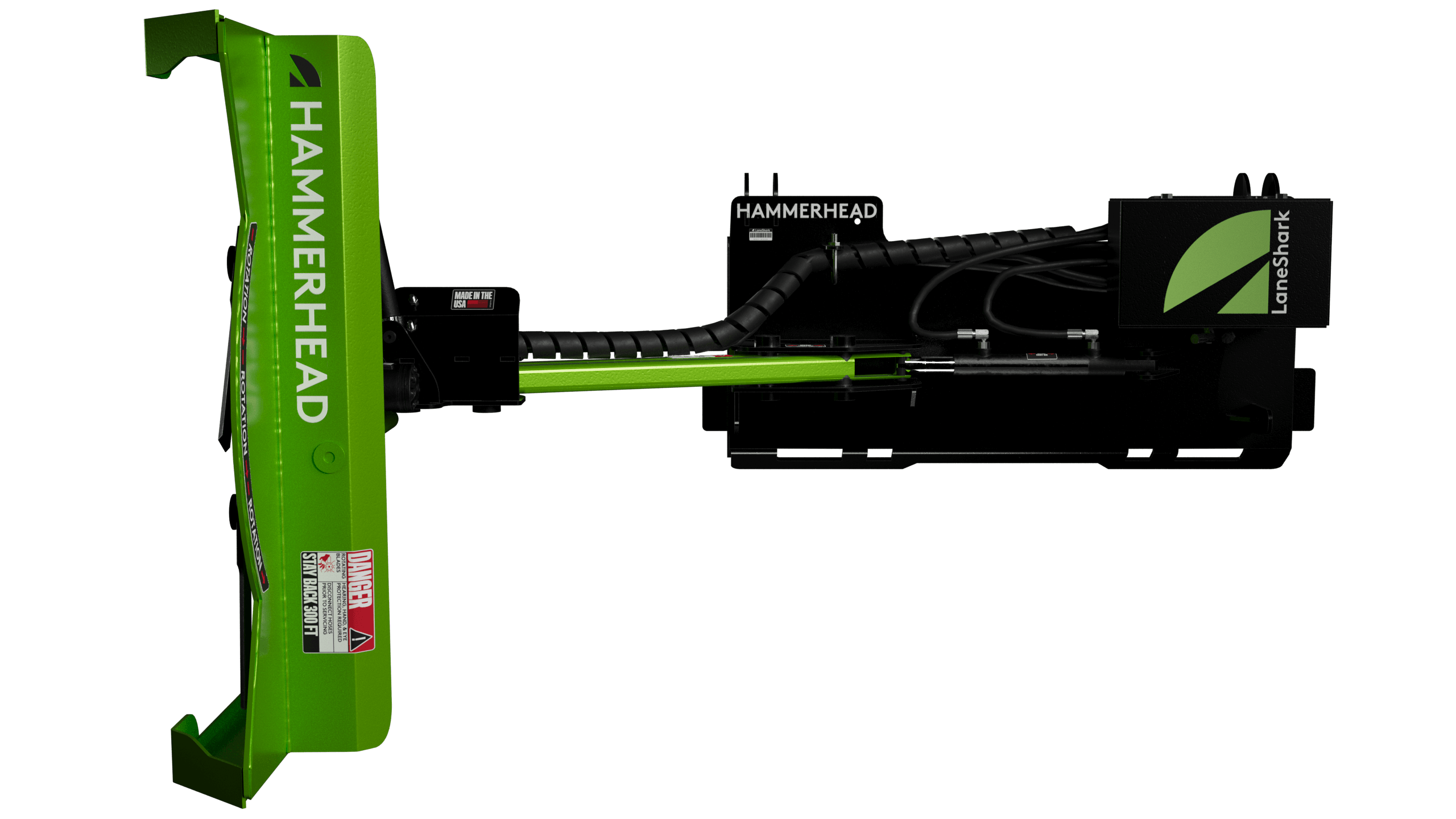

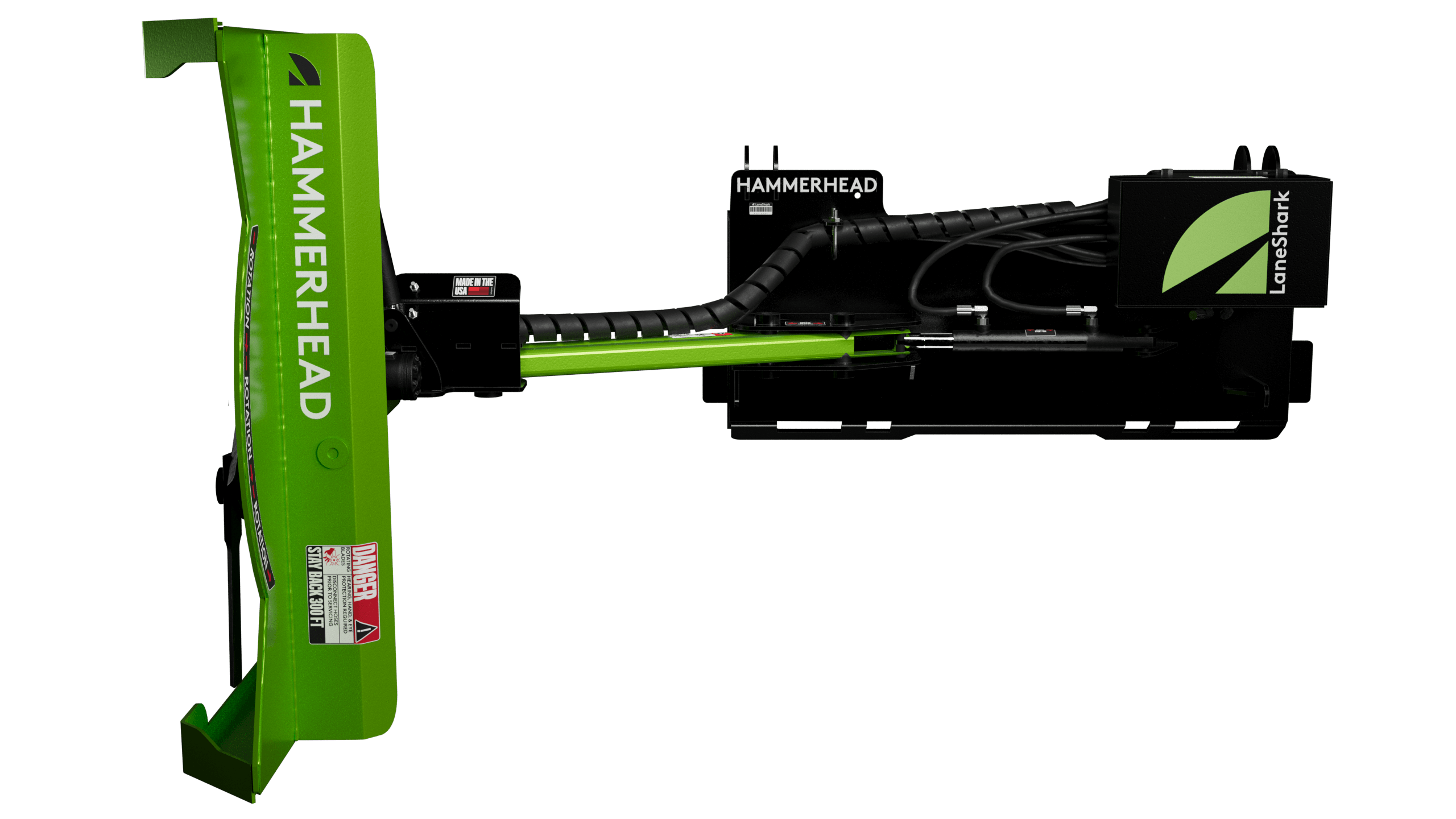

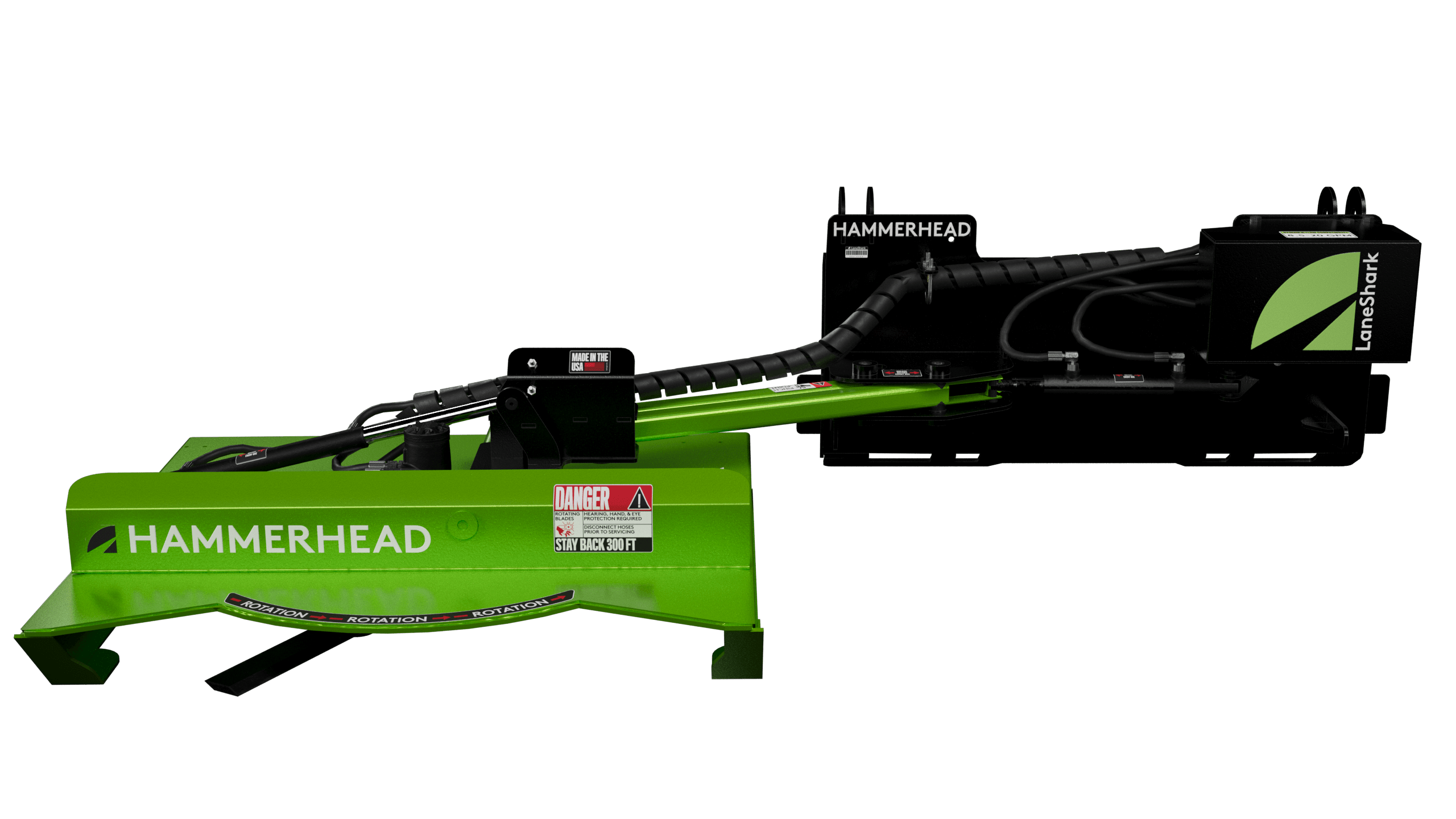

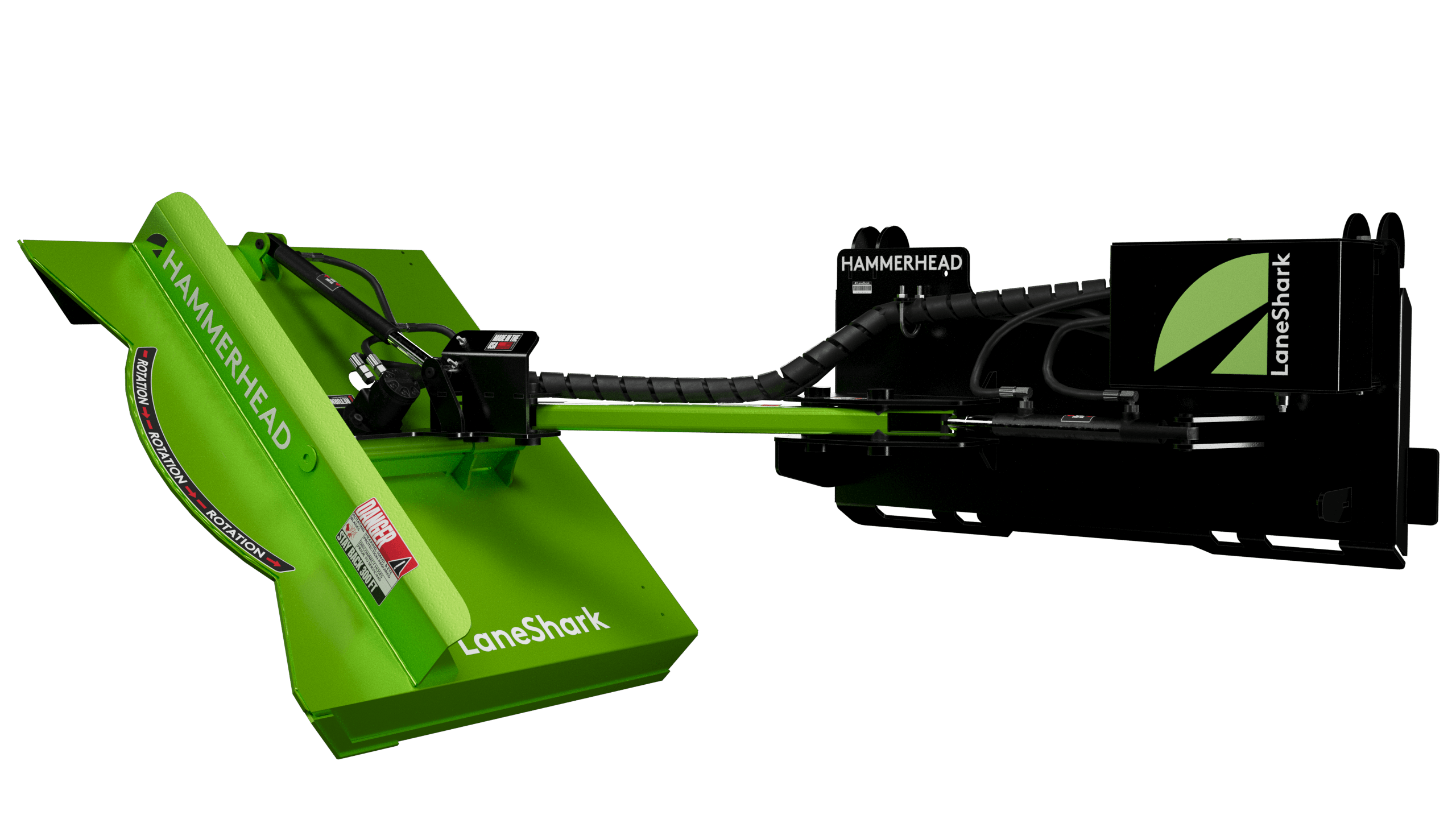

• Wide range of cutting positions: Vertical and offset positions (25 - 55 degrees)
• The Lane Shark Hammerhead attaches to the front of any FEL tractor with SSQA or JD Hook and Pin style attachment system. There are adapters available to fit most other applications sold separately.
• The Lane Shark Hammerhead weighs just under 550lbs.
• When purchasing the Lane Shark brush cutter, you will receive a unit equipped with #10 ORB (O-Ring Boss) inlets. When using ORB, a minimum inside diameter of 1/2" is required.
• Cutting Diameter: 44"
• NOT COMPATIBLE WITH SKID STEERS
Full C-Flow Hydraulic Kit Includes:
• WR Long 3rd Function Valve Kit
• Lane Shark Switch Handle
• Lane Shark C-Flow Valve Component
• Expanded Bulkhead Mount with Return Connect
• C-Flow Component Return Line
• Pre-Fabricated Hydraulic Whips with Check Valve Loop
• Wiring Circuit Tester
• Electrical Connectors and Wrap
• Wire Loom
• In-Line Fuse
***Lane Shark Switch Box [Instead of] LS Switch Handle +$100***
Full C-Flow Hydraulic Kit Includes:
• Continuous Flow Valve Component
• Expanded Bulkhead Mount with Return Connect
• C-Flow Component Return Line
• LS Switch Handle
• Pre-Fabricated Hydraulic Whips with Check Valve Loop
• Wiring Circuit Tester
• Electrical Connectors and Wrap
• Wire Loom
• In-Line Fuse
***Lane Shark Switch Box [Instead of] LS Switch Handle +$100***
